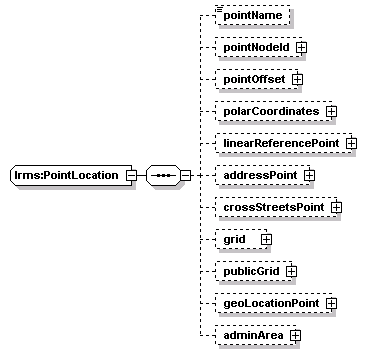

complexType lrms:PointLocation

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	pointName pointNodeId pointOffset polarCoordinates linearReferencePoint addressPoint crossStreetsPoint grid publicGrid geoLocationPoint adminArea
used by	elements  atis:SubRoute/destination atis:Route/destination lrms:LinkGeneral/endLocation atis:Segment/endPoint lrms:LinearReference/endRefPoint atis:SubRoute/origin atis:Route/origin lrms:PolarCoordinates/point lrms:PointOffset/point lrms:RouteLocation/pointLocation lrms:LocationReference/pointLocation lrms:GroupLocation/pointLocation lrms:SpatialObject/pointOrNodeObject/pointOrNode lrms:LinkGeneral/startLocation lrms:LinearReference/startRefPoint lrms:Polygon/vertex atis:Segment/midPoints/midPoint/waypoints
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:complexType name="PointLocation">   <xs:sequence>     <xs:element name="pointName" type="Text-name255" minOccurs="0"/>     <xs:element name="pointNodeId" type="IdType" minOccurs="0"/>     <xs:element name="pointOffset" type="PointOffset" minOccurs="0"/>     <xs:element name="polarCoordinates" type="PolarCoordinates" minOccurs="0"/>     <xs:element name="linearReferencePoint" type="LinearReference" minOccurs="0"/>     <xs:element name="addressPoint" type="AddressPoint" minOccurs="0"/>     <xs:element name="crossStreetsPoint" type="CrossStreetsPoint" minOccurs="0"/>     <xs:element name="grid" type="GridPoint" minOccurs="0"/>     <xs:element name="publicGrid" type="PublicGrid" minOccurs="0"/>     <xs:element name="geoLocationPoint" type="GeoLocation" minOccurs="0"/>     <xs:element name="adminArea" type="AdminAreaGroup" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="locationID" type="String-index64"/> </xs:complexType>

element lrms:PointLocation/pointName

diagram
type	lrms:Text-name255
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="pointName" type="Text-name255" minOccurs="0"/>

element lrms:PointLocation/pointNodeId

diagram
type	lrms:IdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	intOrAlpha databaseID
source	<xs:element name="pointNodeId" type="IdType" minOccurs="0"/>

element lrms:PointLocation/pointOffset

diagram
type	lrms:PointOffset
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	point offsetEast offsetNorth height
source	<xs:element name="pointOffset" type="PointOffset" minOccurs="0"/>

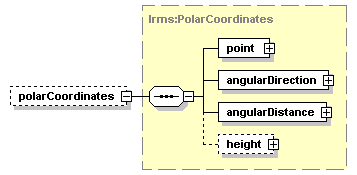

element lrms:PointLocation/polarCoordinates

diagram
type	lrms:PolarCoordinates
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	point angularDirection angularDistance height
source	<xs:element name="polarCoordinates" type="PolarCoordinates" minOccurs="0"/>

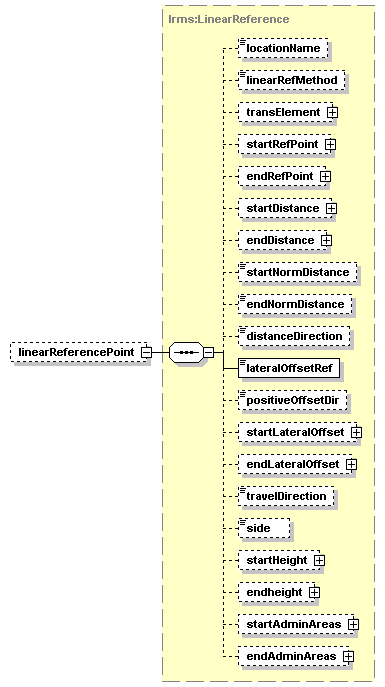

element lrms:PointLocation/linearReferencePoint

diagram
type	lrms:LinearReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName linearRefMethod transElement startRefPoint endRefPoint startDistance endDistance startNormDistance endNormDistance distanceDirection lateralOffsetRef positiveOffsetDir startLateralOffset endLateralOffset travelDirection side startHeight endheight startAdminAreas endAdminAreas
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="linearReferencePoint" type="LinearReference" minOccurs="0"/>

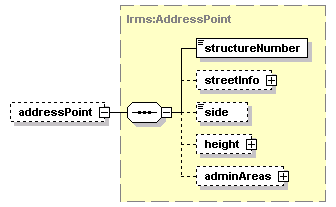

element lrms:PointLocation/addressPoint

diagram
type	lrms:AddressPoint
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	structureNumber streetInfo side height adminAreas
source	<xs:element name="addressPoint" type="AddressPoint" minOccurs="0"/>

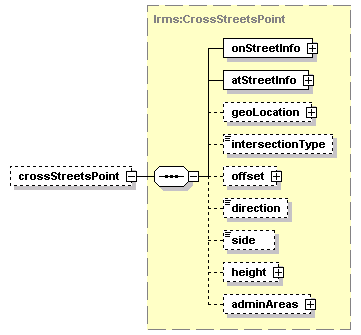

element lrms:PointLocation/crossStreetsPoint

diagram
type	lrms:CrossStreetsPoint
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	onStreetInfo atStreetInfo geoLocation intersectionType offset direction side height adminAreas
source	<xs:element name="crossStreetsPoint" type="CrossStreetsPoint" minOccurs="0"/>

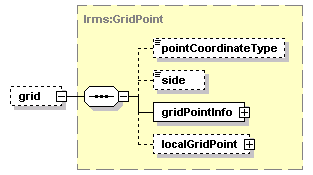

element lrms:PointLocation/grid

diagram
type	lrms:GridPoint
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	pointCoordinateType side gridPointInfo localGridPoint
source	<xs:element name="grid" type="GridPoint" minOccurs="0"/>

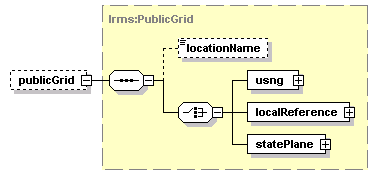

element lrms:PointLocation/publicGrid

diagram
type	lrms:PublicGrid
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName usng localReference statePlane
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="publicGrid" type="PublicGrid" minOccurs="0"/>

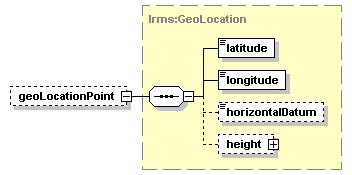

element lrms:PointLocation/geoLocationPoint

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="geoLocationPoint" type="GeoLocation" minOccurs="0"/>

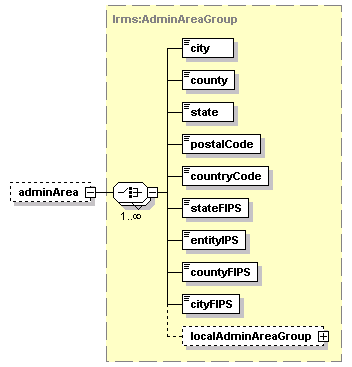

element lrms:PointLocation/adminArea

diagram
type	lrms:AdminAreaGroup
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	city county state postalCode countryCode stateFIPS entityIPS countyFIPS cityFIPS localAdminAreaGroup
source	<xs:element name="adminArea" type="AdminAreaGroup" minOccurs="0"/>
