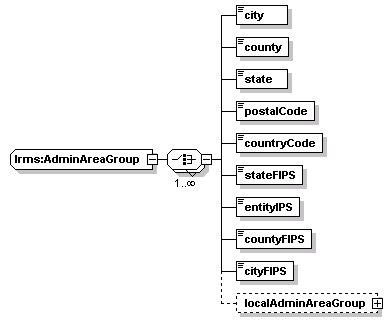

complexType lrms:AdminAreaGroup

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	city county state postalCode countryCode stateFIPS entityIPS countyFIPS cityFIPS localAdminAreaGroup
used by	elements  lrms:PointLocation/adminArea tcip:SPPoint/adminArea lrms:CrossStreetsLink/adminArea1 lrms:CrossStreetsLink/adminArea2 lrms:AddressPoint/adminAreas lrms:AreaLocation/adminAreas lrms:CrossStreetsPoint/adminAreas lrms:LinkLocation/adminAreas atis:WeatherInformation/altLoc lrms:LinearReference/endAdminAreas lrms:AddressLink/fromAdminAreas lrms:LinearReference/startAdminAreas lrms:AddressLink/toAdminAreas
source	<xs:complexType name="AdminAreaGroup">   <xs:choice maxOccurs="unbounded">     <xs:element name="city" type="Text-name255"/>     <xs:element name="county" type="Text-name255"/>     <xs:element name="state" type="Text-name255"/>     <xs:element name="postalCode" type="PostalCode"/>     <xs:element name="countryCode" type="CountryCode"/>     <xs:element name="stateFIPS" type="Int-index8"/>     <xs:element name="entityIPS" type="Int-index32"/>     <xs:element name="countyFIPS" type="Int-index16"/>     <xs:element name="cityFIPS" type="Int-index32"/>     <xs:element name="localAdminAreaGroup" type="local:AdminAreaGroup" minOccurs="0"/>   </xs:choice> </xs:complexType>

element lrms:AdminAreaGroup/city

diagram
type	lrms:Text-name255
properties	isRef  0 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="city" type="Text-name255"/>

element lrms:AdminAreaGroup/county

diagram
type	lrms:Text-name255
properties	isRef  0 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="county" type="Text-name255"/>

element lrms:AdminAreaGroup/state

diagram
type	lrms:Text-name255
properties	isRef  0 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="state" type="Text-name255"/>

element lrms:AdminAreaGroup/postalCode

diagram
type	lrms:PostalCode
properties	isRef  0 content  simple
facets	minLength  5 maxLength  10
source	<xs:element name="postalCode" type="PostalCode"/>

element lrms:AdminAreaGroup/countryCode

diagram
type	lrms:CountryCode
properties	isRef  0 content  simple
facets	minLength  2 maxLength  3
source	<xs:element name="countryCode" type="CountryCode"/>

element lrms:AdminAreaGroup/stateFIPS

diagram
type	lrms:Int-index8
properties	isRef  0 content  simple
source	<xs:element name="stateFIPS" type="Int-index8"/>

element lrms:AdminAreaGroup/entityIPS

diagram
type	lrms:Int-index32
properties	isRef  0 content  simple
source	<xs:element name="entityIPS" type="Int-index32"/>

element lrms:AdminAreaGroup/countyFIPS

diagram
type	lrms:Int-index16
properties	isRef  0 content  simple
source	<xs:element name="countyFIPS" type="Int-index16"/>

element lrms:AdminAreaGroup/cityFIPS

diagram
type	lrms:Int-index32
properties	isRef  0 content  simple
source	<xs:element name="cityFIPS" type="Int-index32"/>

element lrms:AdminAreaGroup/localAdminAreaGroup

diagram
type	AdminAreaGroup
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localAdminAreaGroup" type="local:AdminAreaGroup" minOccurs="0"/>
