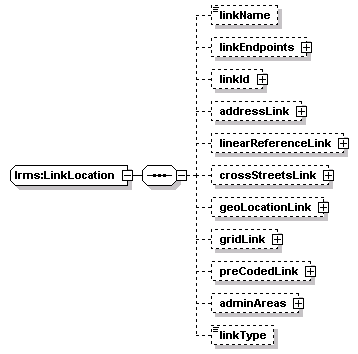

complexType lrms:LinkLocation

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	linkName linkEndpoints linkId addressLink linearReferenceLink crossStreetsLink geoLocationLink gridLink preCodedLink adminAreas linkType
used by	elements  lrms:SpatialObject/linkObject/link lrms:GroupLocation/linkLocation lrms:LocationReference/linkLocation lrms:RouteLocation/linkLocation
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:complexType name="LinkLocation">   <xs:sequence>     <xs:element name="linkName" type="Text-name255" minOccurs="0"/>     <xs:element name="linkEndpoints" type="LinkGeneral" minOccurs="0"/>     <xs:element name="linkId" type="IdType" minOccurs="0"/>     <xs:element name="addressLink" type="AddressLink" minOccurs="0"/>     <xs:element name="linearReferenceLink" type="LinearReference" minOccurs="0"/>     <xs:element name="crossStreetsLink" type="CrossStreetsLink" minOccurs="0"/>     <xs:element name="geoLocationLink" type="GeoLocationLink" minOccurs="0"/>     <xs:element name="gridLink" type="GridPointPair" minOccurs="0"/>     <xs:element name="preCodedLink" type="PreCoded" minOccurs="0"/>     <xs:element name="adminAreas" type="AdminAreaGroup" minOccurs="0"/>     <xs:element name="linkType" type="LinkType" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="locationID" type="String-index64"/> </xs:complexType>

element lrms:LinkLocation/linkName

diagram
type	lrms:Text-name255
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="linkName" type="Text-name255" minOccurs="0"/>

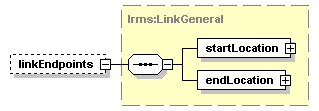

element lrms:LinkLocation/linkEndpoints

diagram
type	lrms:LinkGeneral
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	startLocation endLocation
source	<xs:element name="linkEndpoints" type="LinkGeneral" minOccurs="0"/>

element lrms:LinkLocation/linkId

diagram
type	lrms:IdType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	intOrAlpha databaseID
source	<xs:element name="linkId" type="IdType" minOccurs="0"/>

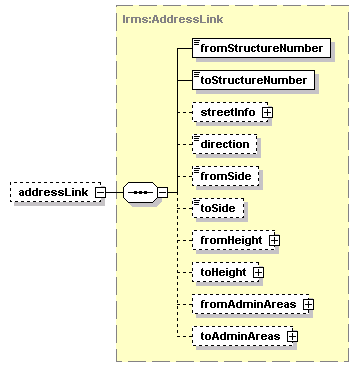

element lrms:LinkLocation/addressLink

diagram
type	lrms:AddressLink
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	fromStructureNumber toStructureNumber streetInfo direction fromSide toSide fromHeight toHeight fromAdminAreas toAdminAreas
source	<xs:element name="addressLink" type="AddressLink" minOccurs="0"/>

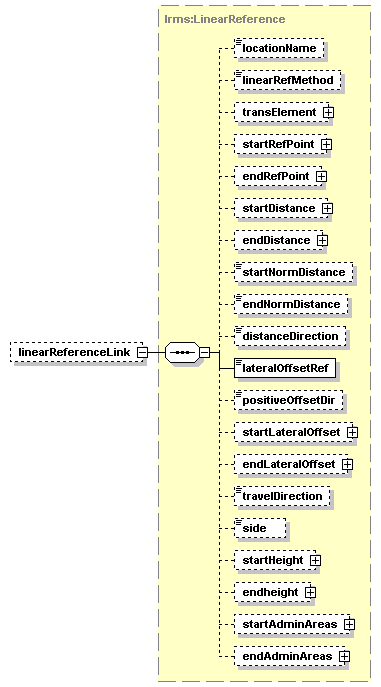

element lrms:LinkLocation/linearReferenceLink

diagram
type	lrms:LinearReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName linearRefMethod transElement startRefPoint endRefPoint startDistance endDistance startNormDistance endNormDistance distanceDirection lateralOffsetRef positiveOffsetDir startLateralOffset endLateralOffset travelDirection side startHeight endheight startAdminAreas endAdminAreas
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="linearReferenceLink" type="LinearReference" minOccurs="0"/>

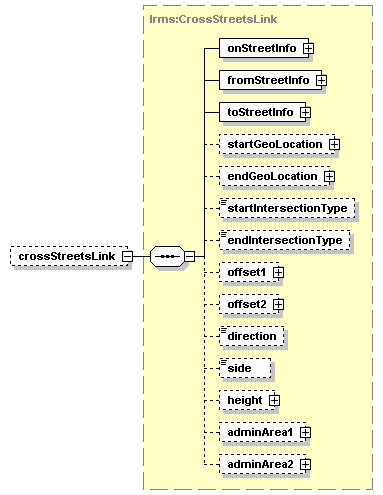

element lrms:LinkLocation/crossStreetsLink

diagram
type	lrms:CrossStreetsLink
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	onStreetInfo fromStreetInfo toStreetInfo startGeoLocation endGeoLocation startIntersectionType endIntersectionType offset1 offset2 direction side height adminArea1 adminArea2
source	<xs:element name="crossStreetsLink" type="CrossStreetsLink" minOccurs="0"/>

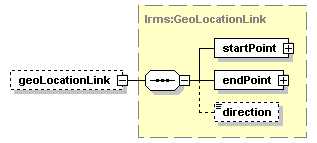

element lrms:LinkLocation/geoLocationLink

diagram
type	lrms:GeoLocationLink
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	startPoint endPoint direction
source	<xs:element name="geoLocationLink" type="GeoLocationLink" minOccurs="0"/>

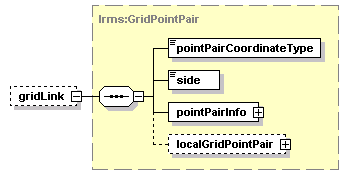

element lrms:LinkLocation/gridLink

diagram
type	lrms:GridPointPair
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	pointPairCoordinateType side pointPairInfo localGridPointPair
source	<xs:element name="gridLink" type="GridPointPair" minOccurs="0"/>

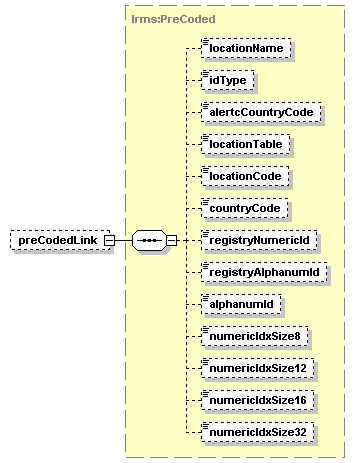

element lrms:LinkLocation/preCodedLink

diagram
type	lrms:PreCoded
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName idType alertcCountryCode locationTable locationCode countryCode registryNumericId registryAlphanumId alphanumId numericIdxSize8 numericIdxSize12 numericIdxSize16 numericIdxSize32
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="preCodedLink" type="PreCoded" minOccurs="0"/>

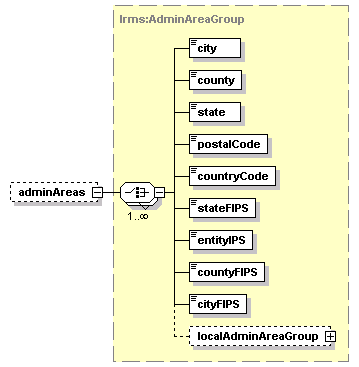

element lrms:LinkLocation/adminAreas

diagram
type	lrms:AdminAreaGroup
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	city county state postalCode countryCode stateFIPS entityIPS countyFIPS cityFIPS localAdminAreaGroup
source	<xs:element name="adminAreas" type="AdminAreaGroup" minOccurs="0"/>

element lrms:LinkLocation/linkType

diagram
type	lrms:LinkType
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="linkType" type="LinkType" minOccurs="0"/>
