complexType lrms:LinkGeneral

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	startLocation endLocation
used by	element  lrms:LinkLocation/linkEndpoints
source	<xs:complexType name="LinkGeneral">   <xs:sequence>     <xs:element name="startLocation" type="PointLocation"/>     <xs:element name="endLocation" type="PointLocation"/>   </xs:sequence> </xs:complexType>

element lrms:LinkGeneral/startLocation

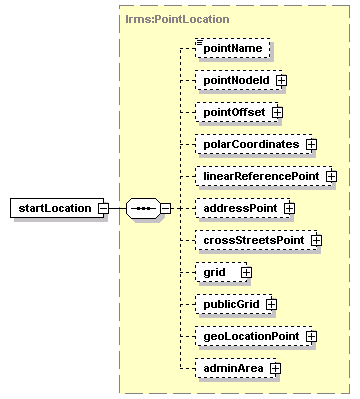

diagram
type	lrms:PointLocation
properties	isRef  0 content  complex
children	pointName pointNodeId pointOffset polarCoordinates linearReferencePoint addressPoint crossStreetsPoint grid publicGrid geoLocationPoint adminArea
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="startLocation" type="PointLocation"/>

element lrms:LinkGeneral/endLocation

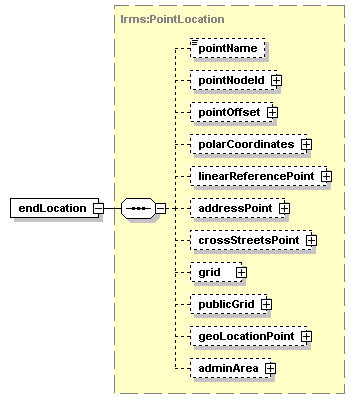

diagram
type	lrms:PointLocation
properties	isRef  0 content  complex
children	pointName pointNodeId pointOffset polarCoordinates linearReferencePoint addressPoint crossStreetsPoint grid publicGrid geoLocationPoint adminArea
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="endLocation" type="PointLocation"/>
