complexType lrms:PreCoded

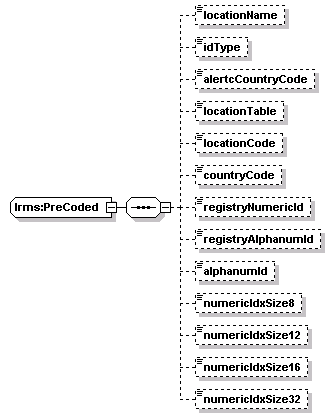

diagram
namespace http://www.LRMS-Adopted-02-00-00
children locationName idType alertcCountryCode locationTable locationCode countryCode registryNumericId registryAlphanumId alphanumId numericIdxSize8 numericIdxSize12 numericIdxSize16 numericIdxSize32
used by
elements lrms:AreaLocation/preCoded lrms:LocationReference/preCoded lrms:LinkLocation/preCodedLink
attributes
Name  Type  Use  Default  Fixed  annotation
locationIDlrms:String-index64
source <xs:complexType name="PreCoded">
  <xs:sequence>
    <xs:element name="locationName" type="Text-name255" minOccurs="0"/>
    <xs:element name="idType" type="PreCodedIdType" minOccurs="0"/>
    <xs:element name="alertcCountryCode" type="AlertCCountryCode" minOccurs="0"/>
    <xs:element name="locationTable" type="LocationTable" minOccurs="0"/>
    <xs:element name="locationCode" type="LocationCode" minOccurs="0"/>
    <xs:element name="countryCode" type="CountryCode" minOccurs="0"/>
    <xs:element name="registryNumericId" type="Int-index16" minOccurs="0"/>
    <xs:element name="registryAlphanumId" type="Text-name255" minOccurs="0"/>
    <xs:element name="alphanumId" type="String-index64" minOccurs="0"/>
    <xs:element name="numericIdxSize8" type="NumericIDXSize8" minOccurs="0"/>
    <xs:element name="numericIdxSize12" type="NumericIDXSize12" minOccurs="0"/>
    <xs:element name="numericIdxSize16" type="NumericIDXSize16" minOccurs="0"/>
    <xs:element name="numericIdxSize32" type="NumericIDXSize32" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="locationID" type="String-index64"/>
</xs:complexType>

element lrms:PreCoded/locationName
diagram
type lrms:Text-name255
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 255
source <xs:element name="locationName" type="Text-name255" minOccurs="0"/>

element lrms:PreCoded/idType
diagram
type lrms:PreCodedIdType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="idType" type="PreCodedIdType" minOccurs="0"/>

element lrms:PreCoded/alertcCountryCode
diagram
type lrms:AlertCCountryCode
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
maxInclusive 15
source <xs:element name="alertcCountryCode" type="AlertCCountryCode" minOccurs="0"/>

element lrms:PreCoded/locationTable
diagram
type lrms:LocationTable
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
maxInclusive 63
source <xs:element name="locationTable" type="LocationTable" minOccurs="0"/>

element lrms:PreCoded/locationCode
diagram
type lrms:LocationCode
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
source <xs:element name="locationCode" type="LocationCode" minOccurs="0"/>

element lrms:PreCoded/countryCode
diagram
type lrms:CountryCode
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 2
maxLength 3
source <xs:element name="countryCode" type="CountryCode" minOccurs="0"/>

element lrms:PreCoded/registryNumericId
diagram
type lrms:Int-index16
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="registryNumericId" type="Int-index16" minOccurs="0"/>

element lrms:PreCoded/registryAlphanumId
diagram
type lrms:Text-name255
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 255
source <xs:element name="registryAlphanumId" type="Text-name255" minOccurs="0"/>

element lrms:PreCoded/alphanumId
diagram
type lrms:String-index64
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 64
source <xs:element name="alphanumId" type="String-index64" minOccurs="0"/>

element lrms:PreCoded/numericIdxSize8
diagram
type lrms:NumericIDXSize8
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="numericIdxSize8" type="NumericIDXSize8" minOccurs="0"/>

element lrms:PreCoded/numericIdxSize12
diagram
type lrms:NumericIDXSize12
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 4095
source <xs:element name="numericIdxSize12" type="NumericIDXSize12" minOccurs="0"/>

element lrms:PreCoded/numericIdxSize16
diagram
type lrms:NumericIDXSize16
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="numericIdxSize16" type="NumericIDXSize16" minOccurs="0"/>

element lrms:PreCoded/numericIdxSize32
diagram
type lrms:NumericIDXSize32
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="numericIdxSize32" type="NumericIDXSize32" minOccurs="0"/>
