complexType lrms:GridPointPair

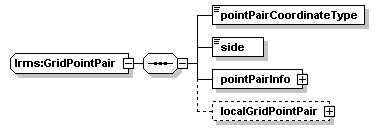

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	pointPairCoordinateType side pointPairInfo localGridPointPair
used by	elements  lrms:LinkLocation/gridLink lrms:Grid/gridPointPair
source	<xs:complexType name="GridPointPair">   <xs:sequence>     <xs:element name="pointPairCoordinateType" type="GridPointPairCoordinateType"/>     <xs:element name="side" type="Side"/>     <xs:element name="pointPairInfo">       <xs:complexType>         <xs:sequence maxOccurs="1000">           <xs:sequence>             <xs:element name="startLongitude" type="GridPointLongitude" minOccurs="0"/>             <xs:element name="startLatitude" type="GridPointLatitude" minOccurs="0"/>             <xs:element name="endLongitude" type="GridPointLongitude" minOccurs="0"/>             <xs:element name="endLatitude" type="GridPointLatitude" minOccurs="0"/>             <xs:element name="gridId" type="Int-index8" minOccurs="0"/>             <xs:element name="startLatitudeGridDelta" type="GridPointLatLonDelta"/>             <xs:element name="startLongitudeGridDelta" type="GridPointLatLonDelta"/>             <xs:element name="endLatitudeGridDelta" type="GridPointLatLonDelta"/>             <xs:element name="endLongitudeGridDelta" type="GridPointLatLonDelta"/>             <xs:element name="endLatitudePointDelta" type="GridLatLonPointDelta"/>             <xs:element name="endLongitudePointDelta" type="GridLatLonPointDelta"/>             <xs:element name="startAltitudeGridDelta" type="GridAltitudeDelta" minOccurs="0"/>             <xs:element name="endAltitudeGridDelta" type="GridAltitudeDelta" minOccurs="0"/>             <xs:element name="offsetStart" type="NormalizedDistance" minOccurs="0"/>             <xs:element name="offsetEnd" type="NormalizedDistance" minOccurs="0"/>           </xs:sequence>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localGridPointPair" type="local:GridPointPair" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element lrms:GridPointPair/pointPairCoordinateType

diagram
type	lrms:GridPointPairCoordinateType
properties	isRef  0 content  simple
source	<xs:element name="pointPairCoordinateType" type="GridPointPairCoordinateType"/>

element lrms:GridPointPair/side

diagram
type	lrms:Side
properties	isRef  0 content  simple
source	<xs:element name="side" type="Side"/>

element lrms:GridPointPair/pointPairInfo

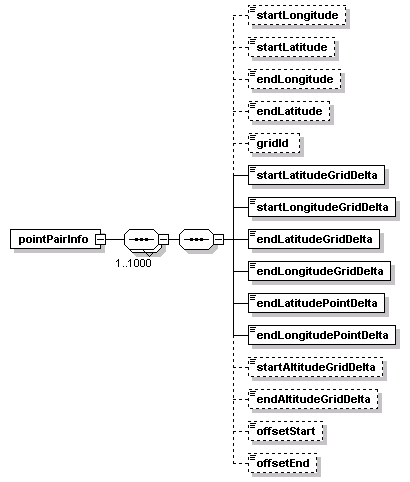

diagram
properties	isRef  0 content  complex
children	startLongitude startLatitude endLongitude endLatitude gridId startLatitudeGridDelta startLongitudeGridDelta endLatitudeGridDelta endLongitudeGridDelta endLatitudePointDelta endLongitudePointDelta startAltitudeGridDelta endAltitudeGridDelta offsetStart offsetEnd
source	<xs:element name="pointPairInfo">   <xs:complexType>     <xs:sequence maxOccurs="1000">       <xs:sequence>         <xs:element name="startLongitude" type="GridPointLongitude" minOccurs="0"/>         <xs:element name="startLatitude" type="GridPointLatitude" minOccurs="0"/>         <xs:element name="endLongitude" type="GridPointLongitude" minOccurs="0"/>         <xs:element name="endLatitude" type="GridPointLatitude" minOccurs="0"/>         <xs:element name="gridId" type="Int-index8" minOccurs="0"/>         <xs:element name="startLatitudeGridDelta" type="GridPointLatLonDelta"/>         <xs:element name="startLongitudeGridDelta" type="GridPointLatLonDelta"/>         <xs:element name="endLatitudeGridDelta" type="GridPointLatLonDelta"/>         <xs:element name="endLongitudeGridDelta" type="GridPointLatLonDelta"/>         <xs:element name="endLatitudePointDelta" type="GridLatLonPointDelta"/>         <xs:element name="endLongitudePointDelta" type="GridLatLonPointDelta"/>         <xs:element name="startAltitudeGridDelta" type="GridAltitudeDelta" minOccurs="0"/>         <xs:element name="endAltitudeGridDelta" type="GridAltitudeDelta" minOccurs="0"/>         <xs:element name="offsetStart" type="NormalizedDistance" minOccurs="0"/>         <xs:element name="offsetEnd" type="NormalizedDistance" minOccurs="0"/>       </xs:sequence>     </xs:sequence>   </xs:complexType> </xs:element>

element lrms:GridPointPair/pointPairInfo/startLongitude

diagram
type	lrms:GridPointLongitude
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -1440000000 maxInclusive  +1440000000
source	<xs:element name="startLongitude" type="GridPointLongitude" minOccurs="0"/>

element lrms:GridPointPair/pointPairInfo/startLatitude

diagram
type	lrms:GridPointLatitude
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -720000000 maxInclusive  +720000000
source	<xs:element name="startLatitude" type="GridPointLatitude" minOccurs="0"/>

element lrms:GridPointPair/pointPairInfo/endLongitude

diagram
type	lrms:GridPointLongitude
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -1440000000 maxInclusive  +1440000000
source	<xs:element name="endLongitude" type="GridPointLongitude" minOccurs="0"/>

element lrms:GridPointPair/pointPairInfo/endLatitude

diagram
type	lrms:GridPointLatitude
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -720000000 maxInclusive  +720000000
source	<xs:element name="endLatitude" type="GridPointLatitude" minOccurs="0"/>

element lrms:GridPointPair/pointPairInfo/gridId

diagram
type	lrms:Int-index8
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="gridId" type="Int-index8" minOccurs="0"/>

element lrms:GridPointPair/pointPairInfo/startLatitudeGridDelta

diagram
type	lrms:GridPointLatLonDelta
properties	isRef  0 content  simple
facets	maxInclusive  16383
source	<xs:element name="startLatitudeGridDelta" type="GridPointLatLonDelta"/>

element lrms:GridPointPair/pointPairInfo/startLongitudeGridDelta

diagram
type	lrms:GridPointLatLonDelta
properties	isRef  0 content  simple
facets	maxInclusive  16383
source	<xs:element name="startLongitudeGridDelta" type="GridPointLatLonDelta"/>

element lrms:GridPointPair/pointPairInfo/endLatitudeGridDelta

diagram
type	lrms:GridPointLatLonDelta
properties	isRef  0 content  simple
facets	maxInclusive  16383
source	<xs:element name="endLatitudeGridDelta" type="GridPointLatLonDelta"/>

element lrms:GridPointPair/pointPairInfo/endLongitudeGridDelta

diagram
type	lrms:GridPointLatLonDelta
properties	isRef  0 content  simple
facets	maxInclusive  16383
source	<xs:element name="endLongitudeGridDelta" type="GridPointLatLonDelta"/>

element lrms:GridPointPair/pointPairInfo/endLatitudePointDelta

diagram
type	lrms:GridLatLonPointDelta
properties	isRef  0 content  simple
facets	minInclusive  1 maxInclusive  254
source	<xs:element name="endLatitudePointDelta" type="GridLatLonPointDelta"/>

element lrms:GridPointPair/pointPairInfo/endLongitudePointDelta

diagram
type	lrms:GridLatLonPointDelta
properties	isRef  0 content  simple
facets	minInclusive  1 maxInclusive  254
source	<xs:element name="endLongitudePointDelta" type="GridLatLonPointDelta"/>

element lrms:GridPointPair/pointPairInfo/startAltitudeGridDelta

diagram
type	lrms:GridAltitudeDelta
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  1 maxInclusive  2048
source	<xs:element name="startAltitudeGridDelta" type="GridAltitudeDelta" minOccurs="0"/>

element lrms:GridPointPair/pointPairInfo/endAltitudeGridDelta

diagram
type	lrms:GridAltitudeDelta
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  1 maxInclusive  2048
source	<xs:element name="endAltitudeGridDelta" type="GridAltitudeDelta" minOccurs="0"/>

element lrms:GridPointPair/pointPairInfo/offsetStart

diagram
type	lrms:NormalizedDistance
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  0 maxInclusive  100
source	<xs:element name="offsetStart" type="NormalizedDistance" minOccurs="0"/>

element lrms:GridPointPair/pointPairInfo/offsetEnd

diagram
type	lrms:NormalizedDistance
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  0 maxInclusive  100
source	<xs:element name="offsetEnd" type="NormalizedDistance" minOccurs="0"/>

element lrms:GridPointPair/localGridPointPair

diagram
type	GridPointPair
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localGridPointPair" type="local:GridPointPair" minOccurs="0"/>
