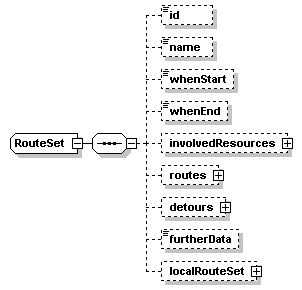

complexType RouteSet
diagram
namespace http://www.IM-Draft-03-00-44a
children id name whenStart whenEnd involvedResources routes detours furtherData localRouteSet
used by
elements StagingArea/egressRoutes/egressRoute StagingArea/ingressRoutes/ingressRoute RouteAdvice/route CenterPlans/routeSets/routeSet DispatchDevice/routes/route/routeSet Evacuation/routeSets/routeSet ImmediateSiteEvacuation/routeSets/routeSet Impact/routeSets/routeSet ResourceAssignmentDet/routes/route/routeSet Response/routeSets/routeSet
source <xs:complexType name="RouteSet">
  <xs:sequence>
    <xs:element name="id" type="ReferenceID" minOccurs="0"/>
    <xs:element name="name" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:minLength value="1"/>
          <xs:maxLength value="200"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <!-- a human handle for the route -->
    <xs:element name="whenStart" type="atis:DateTimePair" minOccurs="0"/>
    <xs:element name="whenEnd" type="atis:DateTimePair" minOccurs="0"/>
    <!-- predicted start and teardown time for the route -->
    <xs:element name="involvedResources" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="involvedResource" type="ReferenceID"/>
          <!-- any equipment or asset deployments engaged in making this route occur  (such as flagmen or VMS) -->
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="routes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="6">
          <xs:element name="route" type="atis:Route"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="detours" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="6">
          <xs:element name="detour" type="atis:Route"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>
    <!-- a URL to any related data
         note that the data returned by such a link is not
         controled by the standard and may vary over time -->
    <xs:element name="localRouteSet" type="local:RouteSet" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element RouteSet/id
diagram
type ReferenceID
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 64
source <xs:element name="id" type="ReferenceID" minOccurs="0"/>

element RouteSet/name
diagram
type restriction of xs:string
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 200
source <xs:element name="name" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="1"/>
      <xs:maxLength value="200"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element RouteSet/whenStart
diagram
type atis:DateTimePair
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="whenStart" type="atis:DateTimePair" minOccurs="0"/>

element RouteSet/whenEnd
diagram
type atis:DateTimePair
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="whenEnd" type="atis:DateTimePair" minOccurs="0"/>

element RouteSet/involvedResources
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children involvedResource
source <xs:element name="involvedResources" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="involvedResource" type="ReferenceID"/>
      <!-- any equipment or asset deployments engaged in making this route occur  (such as flagmen or VMS) -->
    </xs:sequence>
  </xs:complexType>
</xs:element>

element RouteSet/involvedResources/involvedResource
diagram
type ReferenceID
properties
isRef 0
content simple
facets
minLength 1
maxLength 64
source <xs:element name="involvedResource" type="ReferenceID"/>

element RouteSet/routes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children route
source <xs:element name="routes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="6">
      <xs:element name="route" type="atis:Route"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

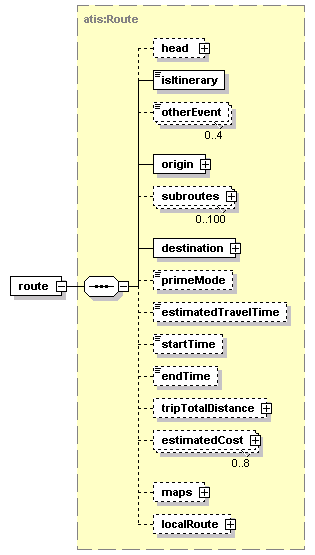

element RouteSet/routes/route
diagram
type atis:Route
properties
isRef 0
content complex
children head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
source <xs:element name="route" type="atis:Route"/>

element RouteSet/detours
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children detour
source <xs:element name="detours" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="6">
      <xs:element name="detour" type="atis:Route"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

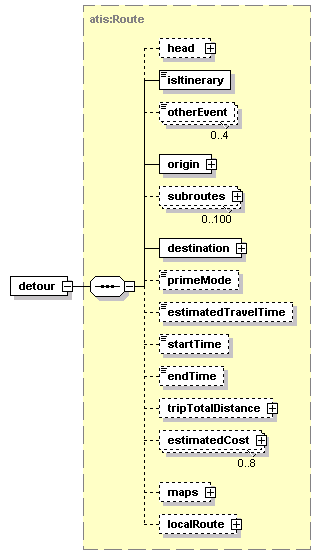

element RouteSet/detours/detour
diagram
type atis:Route
properties
isRef 0
content complex
children head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
source <xs:element name="detour" type="atis:Route"/>

element RouteSet/furtherData
diagram
type URL-Link
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 100
source <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>

element RouteSet/localRouteSet
diagram
type local:RouteSet
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localRouteSet" type="local:RouteSet" minOccurs="0"/>
