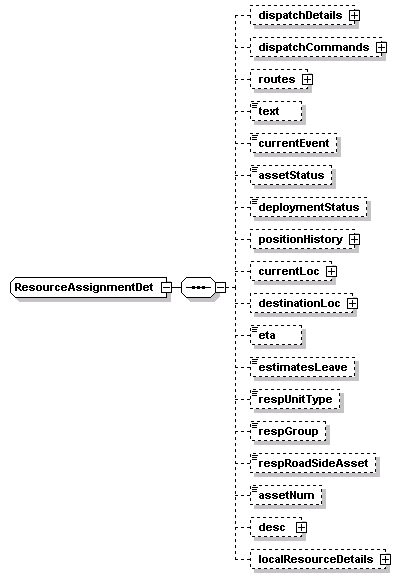

<xs:sequence>
<!-- event details which the device is part of -->
<xs:element name="dispatchDetails" minOccurs="0">
<xs:complexType>
<xs:sequence maxOccurs="25">
<xs:element name="dispatchDetail">
<xs:complexType>
<xs:sequence>
<xs:element name="detailsUse" type="IssueVerb"/>

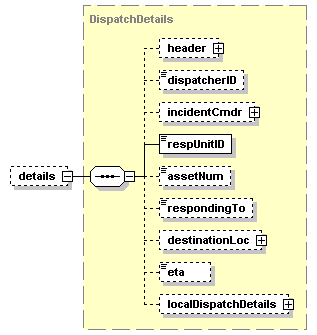

<xs:element name="details" type="DispatchDetails" minOccurs="0"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<!-- #UNTAGGED commands for those events for the device -->
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="dispatchCommands" minOccurs="0">
<xs:complexType>
<xs:sequence maxOccurs="25">
<xs:element name="dispatchCommand">
<xs:complexType>
<xs:sequence>
<xs:element name="commandsUse" type="IssueVerb"/>

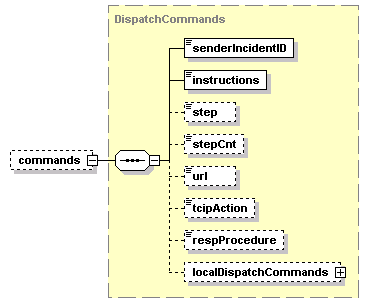

<xs:element name="commands" type="DispatchCommands" minOccurs="0"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<!-- #UNTAGGED routing information -->
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="routes" minOccurs="0">
<xs:complexType>
<xs:sequence maxOccurs="25">
<xs:element name="route">
<xs:complexType>
<xs:sequence>
<xs:element name="routeSetUse" type="IssueVerb"/>

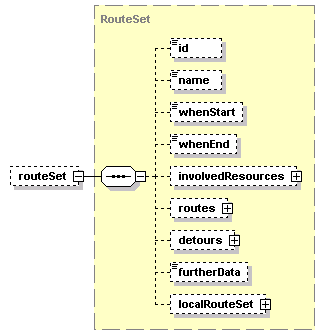

<xs:element name="routeSet" type="RouteSet" minOccurs="0"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<!-- #UNTAGGED a free text feild -->
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="text" type="FreeText" minOccurs="0"/>
<!-- Information provided by or about the device -->
<xs:element name="currentEvent" type="ReferenceID" minOccurs="0"/>
<!-- the object reference (event) to which
this resource is currently assigned -->
<xs:element name="assetStatus" type="itis:AssetStatus" minOccurs="0"/>
<!-- various routine status states -->
<xs:element name="deploymentStatus" type="DeploymentStatus" minOccurs="0"/>
<!-- the status of the asset with respect
to the base from which it is dispatched -->
<xs:element name="positionHistory" minOccurs="0">
<xs:complexType>
<xs:sequence maxOccurs="100">

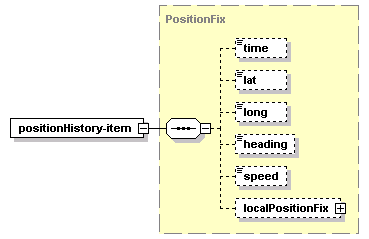

<xs:element name="positionHistory-item" type="PositionFix"/>
<!-- a Lat/Long/Time history -->
</xs:sequence>
</xs:complexType>
</xs:element>

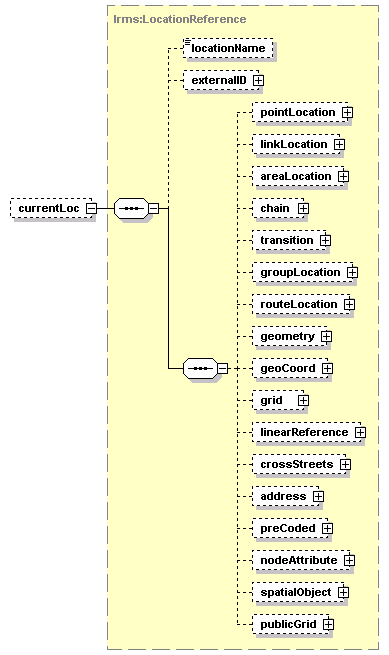

<xs:element name="currentLoc" type="lrms:LocationReference" minOccurs="0"/>
<!-- Based on [SAE.LRMS.ANY]
LRMS profile for best estimate of
point location of resource -->

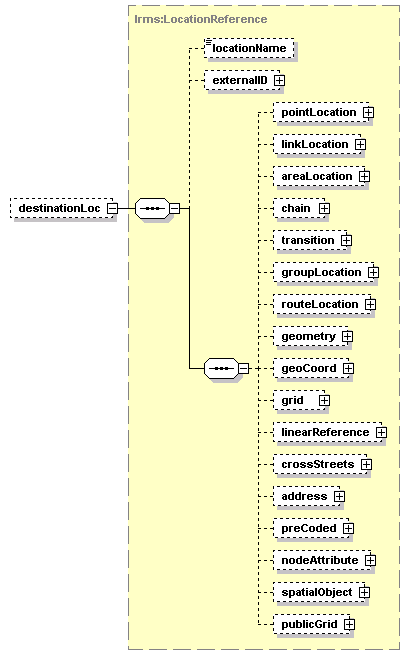

<xs:element name="destinationLoc" type="lrms:LocationReference" minOccurs="0"/>
<!-- where the resource is being dispatched to
Based on [SAE.LRMS.ANY] -->
<xs:element name="eta" type="atis:DateTimePair" minOccurs="0"/>
<!-- ETA at the destinationLoc -->
<xs:element name="estimatesLeave" type="atis:DateTimePair" minOccurs="0"/>
<!-- estimate of when will leave destinationLoc
note: a general time message can be used
to clear an event in general, this use is with
respect to the resource itself
Additional Information about the device (typically static) -->
<xs:element name="respUnitType" type="itis:IncidentResponseEquipment" minOccurs="0"/>
<!-- WAS [ITE.TCIP.IM-ResponseUnitType] -->
<xs:element name="respGroup" type="itis:ResponderGroupAffected" minOccurs="0"/>
<xs:element name="respRoadSideAsset" type="itis:RoadsideAssets" minOccurs="0"/>
<xs:element name="assetNum" type="CenterAssetPermRef" minOccurs="0"/>
<!-- the owning centers perm ID for the asset -->

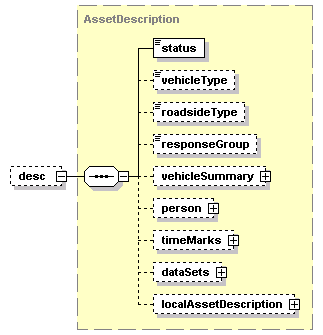

<xs:element name="desc" type="AssetDescription" minOccurs="0"/>
<!-- a complex structure describing the asset
including the equipment and group types -->
<xs:element name="localResourceDetails" type="local:ResourceDetails" minOccurs="0"/>
</xs:sequence>
</xs:complexType>
