complexType DispatchCommands

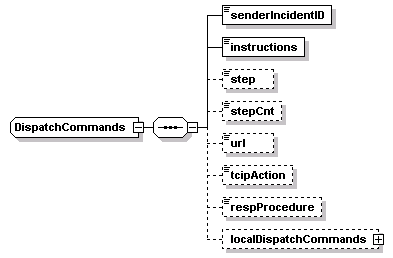

diagram
namespace	http://www.IM-Draft-03-00-44a
children	senderIncidentID instructions step stepCnt url tcipAction respProcedure localDispatchCommands
used by	elements  DispatchDevice/dispatchCommands/dispatchCommand/commands ResourceAssignmentDet/dispatchCommands/dispatchCommand/commands
source	<xs:complexType name="DispatchCommands">   <xs:sequence>     <xs:element name="senderIncidentID" type="ReferenceID"/>     <xs:element name="instructions">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:minLength value="0"/>           <xs:maxLength value="5000"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="step" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:unsignedShort">           <xs:maxInclusive value="2000"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="stepCnt" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:unsignedShort">           <xs:maxInclusive value="2000"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="url" type="URL-Link" minOccurs="0"/>     <xs:element name="tcipAction" type="tcip:IM-RestorationAction" minOccurs="0"/>     <xs:element name="respProcedure" type="tcip:IM-IncidentProcedure" minOccurs="0"/>     <xs:element name="localDispatchCommands" type="local:DispatchCommands" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element DispatchCommands/senderIncidentID

diagram
type	ReferenceID
properties	isRef  0 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="senderIncidentID" type="ReferenceID"/>

element DispatchCommands/instructions

diagram
type	restriction of xs:string
properties	isRef  0 content  simple
facets	minLength  0 maxLength  5000
source	<xs:element name="instructions">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="0"/>       <xs:maxLength value="5000"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DispatchCommands/step

diagram
type	restriction of xs:unsignedShort
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  2000
source	<xs:element name="step" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:unsignedShort">       <xs:maxInclusive value="2000"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DispatchCommands/stepCnt

diagram
type	restriction of xs:unsignedShort
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  2000
source	<xs:element name="stepCnt" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:unsignedShort">       <xs:maxInclusive value="2000"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element DispatchCommands/url

diagram
type	URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  100
source	<xs:element name="url" type="URL-Link" minOccurs="0"/>

element DispatchCommands/tcipAction

diagram
type	tcip:IM-RestorationAction
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="tcipAction" type="tcip:IM-RestorationAction" minOccurs="0"/>

element DispatchCommands/respProcedure

diagram
type	tcip:IM-IncidentProcedure
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  100000
source	<xs:element name="respProcedure" type="tcip:IM-IncidentProcedure" minOccurs="0"/>

element DispatchCommands/localDispatchCommands

diagram
type	local:DispatchCommands
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localDispatchCommands" type="local:DispatchCommands" minOccurs="0"/>
