complexType DispatchDevice

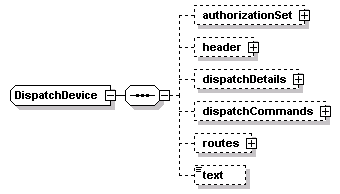

diagram
namespace	http://www.IM-Draft-03-00-44a
children	authorizationSet header dispatchDetails dispatchCommands routes text
used by	element  dispatchDevice
source	<xs:complexType name="DispatchDevice">   <xs:sequence>     <xs:element name="authorizationSet" type="AuthorizationSet" minOccurs="0"/>     <xs:element name="header" type="MobileHeader" minOccurs="0"/>     <xs:element name="dispatchDetails" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="25">           <xs:element name="dispatchDetail">             <xs:complexType>               <xs:sequence>                 <xs:element name="detailsUse" type="IssueVerb"/>                 <xs:element name="details" type="DispatchDetails" minOccurs="0"/>               </xs:sequence>             </xs:complexType>           </xs:element>           <!-- #UNTAGGED -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="dispatchCommands" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="25">           <xs:element name="dispatchCommand">             <xs:complexType>               <xs:sequence>                 <xs:element name="commandsUse" type="IssueVerb"/>                 <xs:element name="commands" type="DispatchCommands" minOccurs="0"/>               </xs:sequence>             </xs:complexType>           </xs:element>           <!-- #UNTAGGED -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="routes" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="25">           <xs:element name="route">             <xs:complexType>               <xs:sequence>                 <xs:element name="routeSetUse" type="IssueVerb"/>                 <xs:element name="routeSet" type="RouteSet" minOccurs="0"/>               </xs:sequence>             </xs:complexType>           </xs:element>           <!-- #UNTAGGED -->         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="text" type="FreeText" minOccurs="0"/>   </xs:sequence> </xs:complexType>

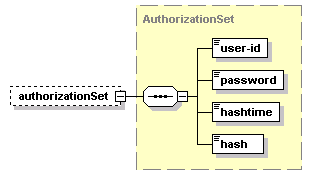

element DispatchDevice/authorizationSet

diagram
type	AuthorizationSet
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	user-id password hashtime hash
source	<xs:element name="authorizationSet" type="AuthorizationSet" minOccurs="0"/>

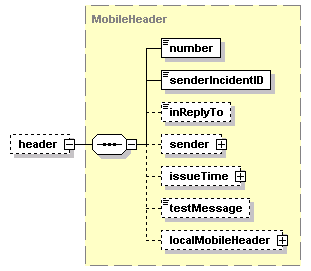

element DispatchDevice/header

diagram
type	MobileHeader
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	number senderIncidentID inReplyTo sender issueTime testMessage localMobileHeader
source	<xs:element name="header" type="MobileHeader" minOccurs="0"/>

element DispatchDevice/dispatchDetails

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	dispatchDetail
source	<xs:element name="dispatchDetails" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="25">       <xs:element name="dispatchDetail">         <xs:complexType>           <xs:sequence>             <xs:element name="detailsUse" type="IssueVerb"/>             <xs:element name="details" type="DispatchDetails" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <!-- #UNTAGGED -->     </xs:sequence>   </xs:complexType> </xs:element>

element DispatchDevice/dispatchDetails/dispatchDetail

diagram
properties	isRef  0 content  complex
children	detailsUse details
source	<xs:element name="dispatchDetail">   <xs:complexType>     <xs:sequence>       <xs:element name="detailsUse" type="IssueVerb"/>       <xs:element name="details" type="DispatchDetails" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element DispatchDevice/dispatchDetails/dispatchDetail/detailsUse

diagram
type	IssueVerb
properties	isRef  0 content  simple
source	<xs:element name="detailsUse" type="IssueVerb"/>

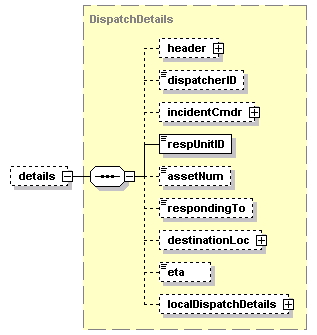

element DispatchDevice/dispatchDetails/dispatchDetail/details

diagram
type	DispatchDetails
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	header dispatcherID incidentCmdr respUnitID assetNum respondingTo destinationLoc eta localDispatchDetails
source	<xs:element name="details" type="DispatchDetails" minOccurs="0"/>

element DispatchDevice/dispatchCommands

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	dispatchCommand
source	<xs:element name="dispatchCommands" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="25">       <xs:element name="dispatchCommand">         <xs:complexType>           <xs:sequence>             <xs:element name="commandsUse" type="IssueVerb"/>             <xs:element name="commands" type="DispatchCommands" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <!-- #UNTAGGED -->     </xs:sequence>   </xs:complexType> </xs:element>

element DispatchDevice/dispatchCommands/dispatchCommand

diagram
properties	isRef  0 content  complex
children	commandsUse commands
source	<xs:element name="dispatchCommand">   <xs:complexType>     <xs:sequence>       <xs:element name="commandsUse" type="IssueVerb"/>       <xs:element name="commands" type="DispatchCommands" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element DispatchDevice/dispatchCommands/dispatchCommand/commandsUse

diagram
type	IssueVerb
properties	isRef  0 content  simple
source	<xs:element name="commandsUse" type="IssueVerb"/>

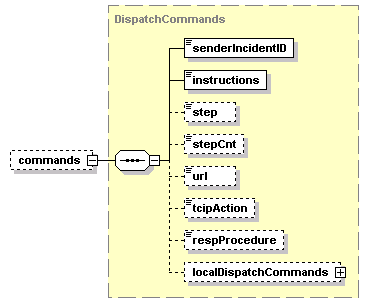

element DispatchDevice/dispatchCommands/dispatchCommand/commands

diagram
type	DispatchCommands
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	senderIncidentID instructions step stepCnt url tcipAction respProcedure localDispatchCommands
source	<xs:element name="commands" type="DispatchCommands" minOccurs="0"/>

element DispatchDevice/routes

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	route
source	<xs:element name="routes" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="25">       <xs:element name="route">         <xs:complexType>           <xs:sequence>             <xs:element name="routeSetUse" type="IssueVerb"/>             <xs:element name="routeSet" type="RouteSet" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>       <!-- #UNTAGGED -->     </xs:sequence>   </xs:complexType> </xs:element>

element DispatchDevice/routes/route

diagram
properties	isRef  0 content  complex
children	routeSetUse routeSet
source	<xs:element name="route">   <xs:complexType>     <xs:sequence>       <xs:element name="routeSetUse" type="IssueVerb"/>       <xs:element name="routeSet" type="RouteSet" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element DispatchDevice/routes/route/routeSetUse

diagram
type	IssueVerb
properties	isRef  0 content  simple
source	<xs:element name="routeSetUse" type="IssueVerb"/>

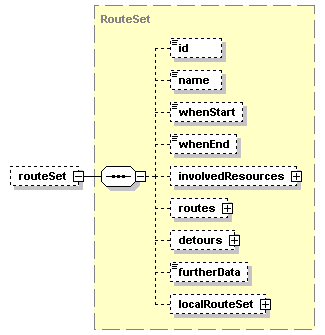

element DispatchDevice/routes/route/routeSet

diagram
type	RouteSet
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	id name whenStart whenEnd involvedResources routes detours furtherData localRouteSet
source	<xs:element name="routeSet" type="RouteSet" minOccurs="0"/>

element DispatchDevice/text

diagram
type	FreeText
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="text" type="FreeText" minOccurs="0"/>
