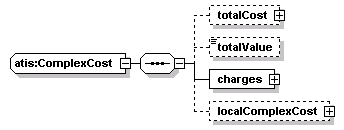

complexType atis:ComplexCost

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	totalCost totalValue charges localComplexCost
used by	elements  atis:Route/estimatedCost atis:Segment/estimatedCost atis:SubRoute/estimatedCost atis:ParkingInstructions/lotCost
source	<xs:complexType name="ComplexCost">   <xs:sequence>     <xs:element name="totalCost" type="Cost" minOccurs="0"/>     <xs:element name="totalValue" type="RideValue" minOccurs="0"/>     <xs:element name="charges">       <xs:complexType>         <xs:sequence maxOccurs="10">           <xs:element name="charge">             <xs:complexType>               <xs:sequence>                 <xs:element name="classification" type="TravelerClass"/>                 <xs:choice>                   <xs:element name="monetaryValue" type="Cost"/>                   <xs:element name="rideValue" type="RideValue"/>                 </xs:choice>                 <xs:element name="fare-structure" type="Freetext" minOccurs="0"/>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localComplexCost" type="local:ComplexCost" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element atis:ComplexCost/totalCost

diagram
type	atis:Cost
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	value currencyUnit
source	<xs:element name="totalCost" type="Cost" minOccurs="0"/>

element atis:ComplexCost/totalValue

diagram
type	atis:RideValue
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  1000000
source	<xs:element name="totalValue" type="RideValue" minOccurs="0"/>

element atis:ComplexCost/charges

diagram
properties	isRef  0 content  complex
children	charge
source	<xs:element name="charges">   <xs:complexType>     <xs:sequence maxOccurs="10">       <xs:element name="charge">         <xs:complexType>           <xs:sequence>             <xs:element name="classification" type="TravelerClass"/>             <xs:choice>               <xs:element name="monetaryValue" type="Cost"/>               <xs:element name="rideValue" type="RideValue"/>             </xs:choice>             <xs:element name="fare-structure" type="Freetext" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

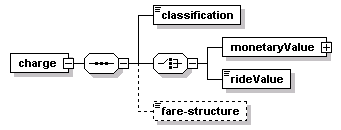

element atis:ComplexCost/charges/charge

diagram
properties	isRef  0 content  complex
children	classification monetaryValue rideValue fare-structure
source	<xs:element name="charge">   <xs:complexType>     <xs:sequence>       <xs:element name="classification" type="TravelerClass"/>       <xs:choice>         <xs:element name="monetaryValue" type="Cost"/>         <xs:element name="rideValue" type="RideValue"/>       </xs:choice>       <xs:element name="fare-structure" type="Freetext" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element atis:ComplexCost/charges/charge/classification

diagram
type	atis:TravelerClass
properties	isRef  0 content  simple
source	<xs:element name="classification" type="TravelerClass"/>

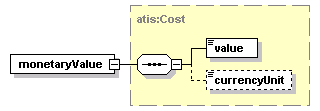

element atis:ComplexCost/charges/charge/monetaryValue

diagram
type	atis:Cost
properties	isRef  0 content  complex
children	value currencyUnit
source	<xs:element name="monetaryValue" type="Cost"/>

element atis:ComplexCost/charges/charge/rideValue

diagram
type	atis:RideValue
properties	isRef  0 content  simple
facets	maxInclusive  1000000
source	<xs:element name="rideValue" type="RideValue"/>

element atis:ComplexCost/charges/charge/fare-structure

diagram
type	atis:Freetext
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  500
source	<xs:element name="fare-structure" type="Freetext" minOccurs="0"/>

element atis:ComplexCost/localComplexCost

diagram
type	ComplexCost
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localComplexCost" type="local:ComplexCost" minOccurs="0"/>
