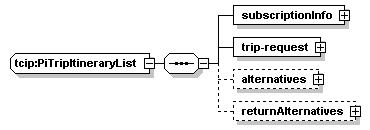

complexType tcip:PiTripItineraryList
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo trip-request alternatives returnAlternatives
used by
element tcip:piTripItineraryList
source <xs:complexType name="PiTripItineraryList">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="trip-request" type="PITripRequest"/>
    <xs:element name="alternatives" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="alternative" type="atis:Route"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="returnAlternatives" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="returnAlternative" type="atis:Route"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:PiTripItineraryList/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

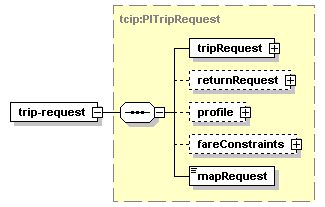

element tcip:PiTripItineraryList/trip-request
diagram
type tcip:PITripRequest
properties
isRef 0
content complex
children tripRequest returnRequest profile fareConstraints mapRequest
source <xs:element name="trip-request" type="PITripRequest"/>

element tcip:PiTripItineraryList/alternatives
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children alternative
source <xs:element name="alternatives" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="alternative" type="atis:Route"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

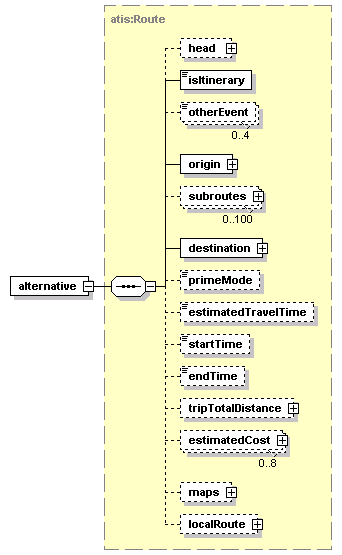

element tcip:PiTripItineraryList/alternatives/alternative
diagram
type atis:Route
properties
isRef 0
content complex
children head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
source <xs:element name="alternative" type="atis:Route"/>

element tcip:PiTripItineraryList/returnAlternatives
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children returnAlternative
source <xs:element name="returnAlternatives" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="returnAlternative" type="atis:Route"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

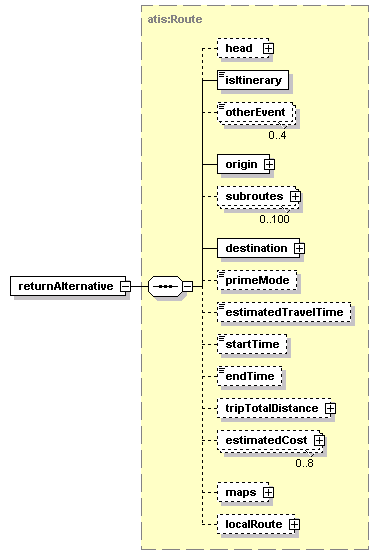

element tcip:PiTripItineraryList/returnAlternatives/returnAlternative
diagram
type atis:Route
properties
isRef 0
content complex
children head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
source <xs:element name="returnAlternative" type="atis:Route"/>
