complexType tcip:PiItineraryFareSub

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionInfo itinerarys
used by	element  tcip:piItineraryFareSub
source	<xs:complexType name="PiItineraryFareSub">   <xs:sequence>     <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>     <xs:element name="itinerarys">       <xs:complexType>         <xs:sequence maxOccurs="50">           <xs:element name="itinerary" type="atis:Route"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:PiItineraryFareSub/subscriptionInfo

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:PiItineraryFareSub/itinerarys

diagram
properties	isRef  0 content  complex
children	itinerary
source	<xs:element name="itinerarys">   <xs:complexType>     <xs:sequence maxOccurs="50">       <xs:element name="itinerary" type="atis:Route"/>     </xs:sequence>   </xs:complexType> </xs:element>

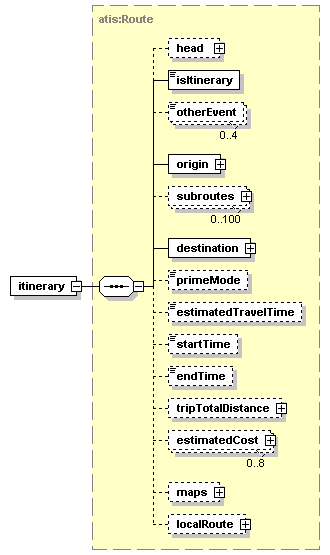

element tcip:PiItineraryFareSub/itinerarys/itinerary

diagram
type	atis:Route
properties	isRef  0 content  complex
children	head isItinerary otherEvent origin subroutes destination primeMode estimatedTravelTime startTime endTime tripTotalDistance estimatedCost maps localRoute
source	<xs:element name="itinerary" type="atis:Route"/>
