complexType tcip:CPTEmployeeIden

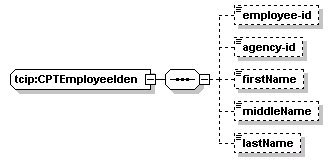

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	employee-id agency-id firstName middleName lastName
used by	elements  tcip:CcReportPullInsAck/ack-employee tcip:CcReportPullOutsAck/ack-employee tcip:IMIncident/assigned-by tcip:CcWorkOrderUpdateAck/assignee tcip:CcWorkOrderUpdate/assignee tcip:CcWorkOrderAssignAck/assignee tcip:CcWorkOrderAssign/assignee tcip:ImInitialReportAck/dispatcher tcip:ImUpdateAck/dispatcher tcip:PIFoundItem/empl-finder tcip:FCCashBoxReconciliation/employee tcip:CPTEmployee/employee tcip:CPTAssignedEmployee/employee tcip:CCLogOnOperator/employee tcip:CCLogOffOperator/employee tcip:CcPTVInspectionAck/employee tcip:CcPTVInspection/employee tcip:FCCashBoxReconciliation/employee2 tcip:PIFoundItem/found-employeeID tcip:CptEmployeeList/include-employees/include-employee tcip:CptEmployeeListSub/include-employees/include-employee tcip:PILostItem/lost-employeeID tcip:ImUpdateAck/originator tcip:ImInitialReportAck/originator tcip:ImInitialIncidentReport/originator tcip:ImIncidentUpdate/originator tcip:SCHTripDetailInfo/other-employees/other-employee tcip:SCHOperatorAssignment/other-employees/other-employee tcip:CcReportPullOutsAck/report-employee tcip:CcReportPullOuts/report-employee tcip:CcReportPullInsAck/report-employee tcip:CcReportPullIns/report-employee tcip:PILostItem/reported-to-empl tcip:IMIncident/reportingEmployee tcip:ImIncidentList/requester tcip:ImIncidentHistorySub/requester tcip:ImIncidentHistory/requester tcip:ImIncidentListSub/requester tcip:CCWorkOrder/requester
source	<xs:complexType name="CPTEmployeeIden">   <xs:sequence>     <xs:element name="employee-id" type="CPT-EmployeeID" minOccurs="0"/>     <xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>     <xs:element name="firstName" type="CPT-PersonFirstName" minOccurs="0"/>     <xs:element name="middleName" type="CPT-PersonMiddleName" minOccurs="0"/>     <xs:element name="lastName" type="CPT-PersonLastName" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CPTEmployeeIden/employee-id

diagram
type	tcip:CPT-EmployeeID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="employee-id" type="CPT-EmployeeID" minOccurs="0"/>

element tcip:CPTEmployeeIden/agency-id

diagram
type	tcip:CPT-AgencyID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>

element tcip:CPTEmployeeIden/firstName

diagram
type	tcip:CPT-PersonFirstName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="firstName" type="CPT-PersonFirstName" minOccurs="0"/>

element tcip:CPTEmployeeIden/middleName

diagram
type	tcip:CPT-PersonMiddleName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="middleName" type="CPT-PersonMiddleName" minOccurs="0"/>

element tcip:CPTEmployeeIden/lastName

diagram
type	tcip:CPT-PersonLastName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="lastName" type="CPT-PersonLastName" minOccurs="0"/>
