complexType tcip:CcWorkOrderAssign

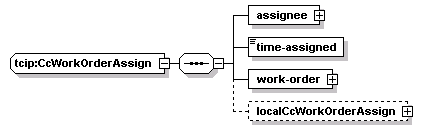

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	assignee time-assigned work-order localCcWorkOrderAssign
used by	element  tcip:ccWorkOrderAssign
source	<xs:complexType name="CcWorkOrderAssign">   <xs:sequence>     <xs:element name="assignee" type="CPTEmployeeIden"/>     <xs:element name="time-assigned" type="CPT-DateTime"/>     <xs:element name="work-order" type="CCWorkOrder"/>     <xs:element name="localCcWorkOrderAssign" type="local:CcWorkOrderAssign" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CcWorkOrderAssign/assignee

diagram
type	tcip:CPTEmployeeIden
properties	isRef  0 content  complex
children	employee-id agency-id firstName middleName lastName
source	<xs:element name="assignee" type="CPTEmployeeIden"/>

element tcip:CcWorkOrderAssign/time-assigned

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time-assigned" type="CPT-DateTime"/>

element tcip:CcWorkOrderAssign/work-order

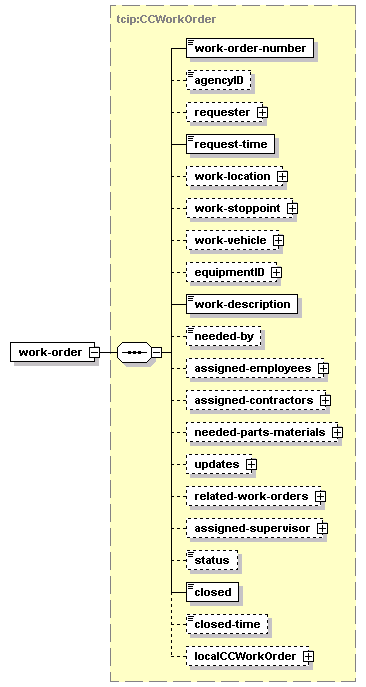

diagram
type	tcip:CCWorkOrder
properties	isRef  0 content  complex
children	work-order-number agencyID requester request-time work-location work-stoppoint work-vehicle equipmentID work-description needed-by assigned-employees assigned-contractors needed-parts-materials updates related-work-orders assigned-supervisor status closed closed-time localCCWorkOrder
source	<xs:element name="work-order" type="CCWorkOrder"/>

element tcip:CcWorkOrderAssign/localCcWorkOrderAssign

diagram
type	CcWorkOrderAssign
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localCcWorkOrderAssign" type="local:CcWorkOrderAssign" minOccurs="0"/>
