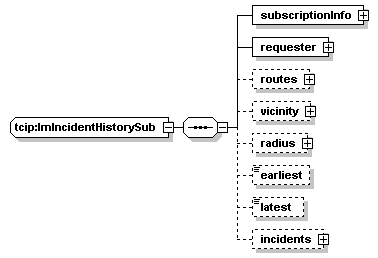

complexType tcip:ImIncidentHistorySub

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionInfo requester routes vicinity radius earliest latest incidents
used by	element  tcip:imIncidentHistorySub
source	<xs:complexType name="ImIncidentHistorySub">   <xs:sequence>     <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>     <xs:element name="requester" type="CPTEmployeeIden"/>     <xs:element name="routes" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="500">           <xs:element name="route" type="SCHRouteIden"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="vicinity" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="radius" type="lrms:Distance" minOccurs="0"/>     <xs:element name="earliest" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="latest" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="incidents" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="1000">           <xs:element name="incident" type="IMIncidentIden"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:ImIncidentHistorySub/subscriptionInfo

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:ImIncidentHistorySub/requester

diagram
type	tcip:CPTEmployeeIden
properties	isRef  0 content  complex
children	employee-id agency-id firstName middleName lastName
source	<xs:element name="requester" type="CPTEmployeeIden"/>

element tcip:ImIncidentHistorySub/routes

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	route
source	<xs:element name="routes" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="500">       <xs:element name="route" type="SCHRouteIden"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:ImIncidentHistorySub/routes/route

diagram
type	tcip:SCHRouteIden
properties	isRef  0 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="route" type="SCHRouteIden"/>

element tcip:ImIncidentHistorySub/vicinity

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="vicinity" type="lrms:GeoLocation" minOccurs="0"/>

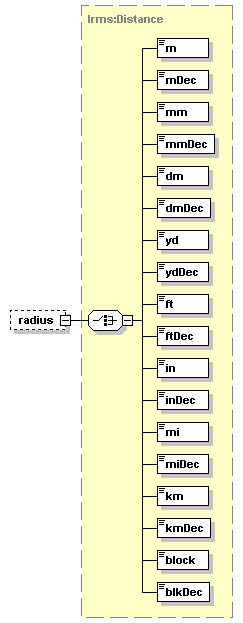

element tcip:ImIncidentHistorySub/radius

diagram
type	lrms:Distance
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="radius" type="lrms:Distance" minOccurs="0"/>

element tcip:ImIncidentHistorySub/earliest

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="earliest" type="CPT-DateTime" minOccurs="0"/>

element tcip:ImIncidentHistorySub/latest

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="latest" type="CPT-DateTime" minOccurs="0"/>

element tcip:ImIncidentHistorySub/incidents

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	incident
source	<xs:element name="incidents" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="1000">       <xs:element name="incident" type="IMIncidentIden"/>     </xs:sequence>   </xs:complexType> </xs:element>

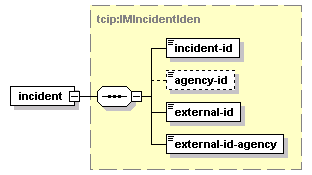

element tcip:ImIncidentHistorySub/incidents/incident

diagram
type	tcip:IMIncidentIden
properties	isRef  0 content  complex
children	incident-id agency-id external-id external-id-agency
source	<xs:element name="incident" type="IMIncidentIden"/>
