complexType tcip:CcReportPullIns

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	report-employee report-time pull-ins
used by	element  tcip:ccReportPullIns
source	<xs:complexType name="CcReportPullIns">   <xs:sequence>     <xs:element name="report-employee" type="CPTEmployeeIden"/>     <!-- who made the report -->     <xs:element name="report-time" type="CPT-DateTime"/>     <!-- when the report was made -->     <xs:element name="pull-ins">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="pull-in" type="CCPullInReport"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

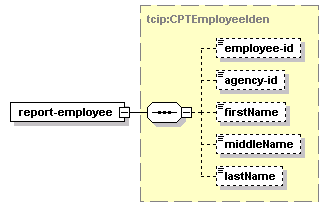

element tcip:CcReportPullIns/report-employee

diagram
type	tcip:CPTEmployeeIden
properties	isRef  0 content  complex
children	employee-id agency-id firstName middleName lastName
source	<xs:element name="report-employee" type="CPTEmployeeIden"/>

element tcip:CcReportPullIns/report-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="report-time" type="CPT-DateTime"/>

element tcip:CcReportPullIns/pull-ins

diagram
properties	isRef  0 content  complex
children	pull-in
source	<xs:element name="pull-ins">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="pull-in" type="CCPullInReport"/>     </xs:sequence>   </xs:complexType> </xs:element>

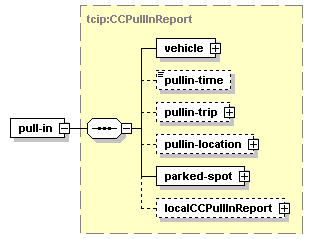

element tcip:CcReportPullIns/pull-ins/pull-in

diagram
type	tcip:CCPullInReport
properties	isRef  0 content  complex
children	vehicle pullin-time pullin-trip pullin-location parked-spot localCCPullInReport
source	<xs:element name="pull-in" type="CCPullInReport"/>
