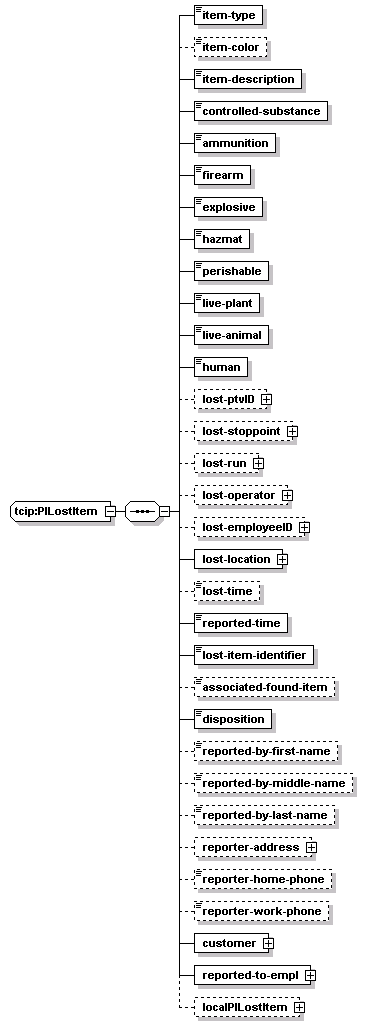

complexType tcip:PILostItem
diagram
namespace http://www.TCIP-Adopted-03-00-01
children item-type item-color item-description controlled-substance ammunition firearm explosive hazmat perishable live-plant live-animal human lost-ptvID lost-stoppoint lost-run lost-operator lost-employeeID lost-location lost-time reported-time lost-item-identifier associated-found-item disposition reported-by-first-name reported-by-middle-name reported-by-last-name reporter-address reporter-home-phone reporter-work-phone customer reported-to-empl localPILostItem
used by
elements tcip:PiFoundItems/lost-items/lost-item tcip:PiFoundItemsSub/lost-items/lost-item tcip:PiReportLostItems/reports/report
source <xs:complexType name="PILostItem">
  <xs:sequence>
    <xs:element name="item-type" type="CPT-Footnote"/>
    <xs:element name="item-color" type="CPT-Footnote" minOccurs="0"/>
    <xs:element name="item-description" type="CPT-Footnote"/>
    <xs:element name="controlled-substance" type="CPT-Boolean"/>
    <xs:element name="ammunition" type="CPT-Boolean"/>
    <xs:element name="firearm" type="CPT-Boolean"/>
    <xs:element name="explosive" type="CPT-Boolean"/>
    <xs:element name="hazmat" type="CPT-Boolean"/>
    <xs:element name="perishable" type="CPT-Boolean"/>
    <xs:element name="live-plant" type="CPT-Boolean"/>
    <xs:element name="live-animal" type="CPT-Boolean"/>
    <xs:element name="human" type="CPT-Boolean"/>
    <xs:element name="lost-ptvID" type="CPTVehicleIden" minOccurs="0"/>
    <xs:element name="lost-stoppoint" type="CPTStoppointIden" minOccurs="0"/>
    <xs:element name="lost-run" type="SCHRunIden" minOccurs="0"/>
    <xs:element name="lost-operator" type="CPTOperatorIden" minOccurs="0"/>
    <xs:element name="lost-employeeID" type="CPTEmployeeIden" minOccurs="0"/>
    <xs:element name="lost-location" type="lrms:AddressPoint"/>
    <xs:element name="lost-time" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="reported-time" type="CPT-DateTime"/>
    <xs:element name="lost-item-identifier" type="PI-LostFoundItemID"/>
    <xs:element name="associated-found-item" type="PI-LostFoundItemID" minOccurs="0"/>
    <xs:element name="disposition" type="PI-LostItemDisposition"/>
    <xs:element name="reported-by-first-name" type="CPT-PersonFirstName" minOccurs="0"/>
    <xs:element name="reported-by-middle-name" type="CPT-PersonMiddleName" minOccurs="0"/>
    <xs:element name="reported-by-last-name" type="CPT-PersonLastName" minOccurs="0"/>
    <xs:element name="reporter-address" type="lrms:AddressPoint" minOccurs="0"/>
    <xs:element name="reporter-home-phone" type="IM-HomePhone" minOccurs="0"/>
    <xs:element name="reporter-work-phone" type="IM-WorkPhone" minOccurs="0"/>
    <xs:element name="customer" type="PITravelerIden"/>
    <xs:element name="reported-to-empl" type="CPTEmployeeIden"/>
    <xs:element name="localPILostItem" type="local:PILostItem" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:PILostItem/item-type
diagram
type tcip:CPT-Footnote
properties
isRef 0
content simple
facets
minLength 0
maxLength 255
source <xs:element name="item-type" type="CPT-Footnote"/>

element tcip:PILostItem/item-color
diagram
type tcip:CPT-Footnote
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 0
maxLength 255
source <xs:element name="item-color" type="CPT-Footnote" minOccurs="0"/>

element tcip:PILostItem/item-description
diagram
type tcip:CPT-Footnote
properties
isRef 0
content simple
facets
minLength 0
maxLength 255
source <xs:element name="item-description" type="CPT-Footnote"/>

element tcip:PILostItem/controlled-substance
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="controlled-substance" type="CPT-Boolean"/>

element tcip:PILostItem/ammunition
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="ammunition" type="CPT-Boolean"/>

element tcip:PILostItem/firearm
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="firearm" type="CPT-Boolean"/>

element tcip:PILostItem/explosive
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="explosive" type="CPT-Boolean"/>

element tcip:PILostItem/hazmat
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="hazmat" type="CPT-Boolean"/>

element tcip:PILostItem/perishable
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="perishable" type="CPT-Boolean"/>

element tcip:PILostItem/live-plant
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="live-plant" type="CPT-Boolean"/>

element tcip:PILostItem/live-animal
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="live-animal" type="CPT-Boolean"/>

element tcip:PILostItem/human
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="human" type="CPT-Boolean"/>

element tcip:PILostItem/lost-ptvID
diagram
type tcip:CPTVehicleIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children vehicle-id agency-id vin
source <xs:element name="lost-ptvID" type="CPTVehicleIden" minOccurs="0"/>

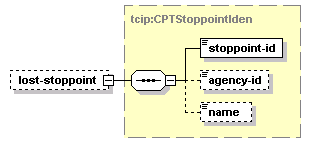

element tcip:PILostItem/lost-stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children stoppoint-id agency-id name
source <xs:element name="lost-stoppoint" type="CPTStoppointIden" minOccurs="0"/>

element tcip:PILostItem/lost-run
diagram
type tcip:SCHRunIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children run-id agency-id designator
source <xs:element name="lost-run" type="SCHRunIden" minOccurs="0"/>

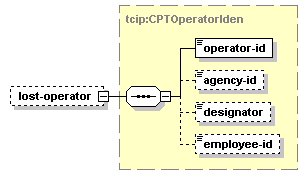

element tcip:PILostItem/lost-operator
diagram
type tcip:CPTOperatorIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children operator-id agency-id designator employee-id
source <xs:element name="lost-operator" type="CPTOperatorIden" minOccurs="0"/>

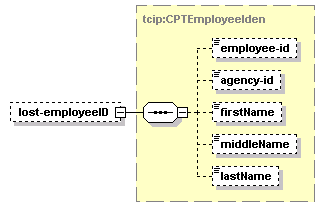

element tcip:PILostItem/lost-employeeID
diagram
type tcip:CPTEmployeeIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children employee-id agency-id firstName middleName lastName
source <xs:element name="lost-employeeID" type="CPTEmployeeIden" minOccurs="0"/>

element tcip:PILostItem/lost-location
diagram
type lrms:AddressPoint
properties
isRef 0
content complex
children structureNumber streetInfo side height adminAreas
source <xs:element name="lost-location" type="lrms:AddressPoint"/>

element tcip:PILostItem/lost-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="lost-time" type="CPT-DateTime" minOccurs="0"/>

element tcip:PILostItem/reported-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="reported-time" type="CPT-DateTime"/>

element tcip:PILostItem/lost-item-identifier
diagram
type tcip:PI-LostFoundItemID
properties
isRef 0
content simple
source <xs:element name="lost-item-identifier" type="PI-LostFoundItemID"/>

element tcip:PILostItem/associated-found-item
diagram
type tcip:PI-LostFoundItemID
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="associated-found-item" type="PI-LostFoundItemID" minOccurs="0"/>

element tcip:PILostItem/disposition
diagram
type tcip:PI-LostItemDisposition
properties
isRef 0
content simple
source <xs:element name="disposition" type="PI-LostItemDisposition"/>

element tcip:PILostItem/reported-by-first-name
diagram
type tcip:CPT-PersonFirstName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 30
source <xs:element name="reported-by-first-name" type="CPT-PersonFirstName" minOccurs="0"/>

element tcip:PILostItem/reported-by-middle-name
diagram
type tcip:CPT-PersonMiddleName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 30
source <xs:element name="reported-by-middle-name" type="CPT-PersonMiddleName" minOccurs="0"/>

element tcip:PILostItem/reported-by-last-name
diagram
type tcip:CPT-PersonLastName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 30
source <xs:element name="reported-by-last-name" type="CPT-PersonLastName" minOccurs="0"/>

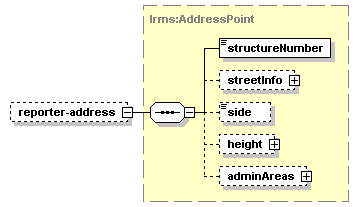

element tcip:PILostItem/reporter-address
diagram
type lrms:AddressPoint
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children structureNumber streetInfo side height adminAreas
source <xs:element name="reporter-address" type="lrms:AddressPoint" minOccurs="0"/>

element tcip:PILostItem/reporter-home-phone
diagram
type tcip:IM-HomePhone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 16
source <xs:element name="reporter-home-phone" type="IM-HomePhone" minOccurs="0"/>

element tcip:PILostItem/reporter-work-phone
diagram
type tcip:IM-WorkPhone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 16
source <xs:element name="reporter-work-phone" type="IM-WorkPhone" minOccurs="0"/>

element tcip:PILostItem/customer
diagram
type tcip:PITravelerIden
properties
isRef 0
content complex
children traveler-id agency-id firstName middleName lastName
source <xs:element name="customer" type="PITravelerIden"/>

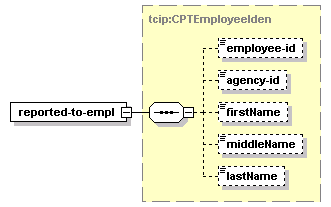

element tcip:PILostItem/reported-to-empl
diagram
type tcip:CPTEmployeeIden
properties
isRef 0
content complex
children employee-id agency-id firstName middleName lastName
source <xs:element name="reported-to-empl" type="CPTEmployeeIden"/>

element tcip:PILostItem/localPILostItem
diagram
type PILostItem
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localPILostItem" type="local:PILostItem" minOccurs="0"/>
