complexType tcip:PiFoundItemsSub

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionHeader lost-items
used by	element  tcip:piFoundItemsSub
source	<xs:complexType name="PiFoundItemsSub">   <xs:sequence>     <xs:element name="subscriptionHeader" type="CPTSubscriptionHeader"/>     <xs:element name="lost-items">       <xs:complexType>         <xs:sequence maxOccurs="100">           <xs:element name="lost-item" type="PILostItem"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

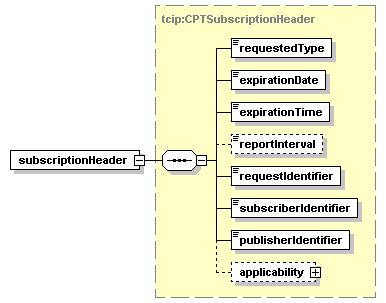

element tcip:PiFoundItemsSub/subscriptionHeader

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionHeader" type="CPTSubscriptionHeader"/>

element tcip:PiFoundItemsSub/lost-items

diagram
properties	isRef  0 content  complex
children	lost-item
source	<xs:element name="lost-items">   <xs:complexType>     <xs:sequence maxOccurs="100">       <xs:element name="lost-item" type="PILostItem"/>     </xs:sequence>   </xs:complexType> </xs:element>

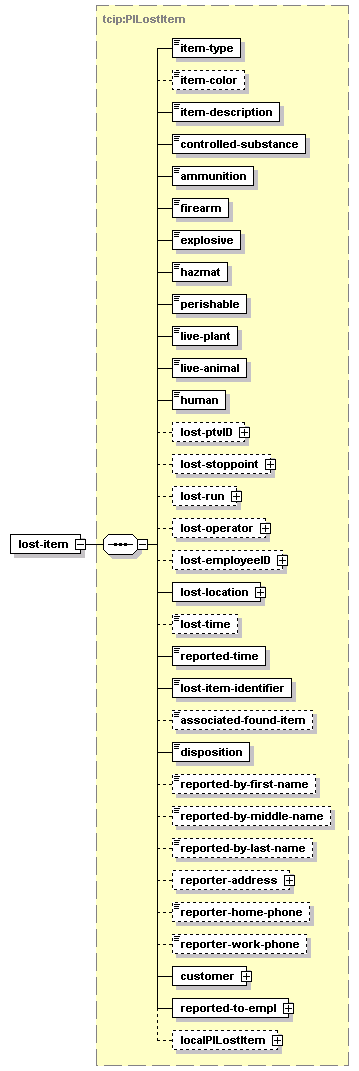

element tcip:PiFoundItemsSub/lost-items/lost-item

diagram
type	tcip:PILostItem
properties	isRef  0 content  complex
children	item-type item-color item-description controlled-substance ammunition firearm explosive hazmat perishable live-plant live-animal human lost-ptvID lost-stoppoint lost-run lost-operator lost-employeeID lost-location lost-time reported-time lost-item-identifier associated-found-item disposition reported-by-first-name reported-by-middle-name reported-by-last-name reporter-address reporter-home-phone reporter-work-phone customer reported-to-empl localPILostItem
source	<xs:element name="lost-item" type="PILostItem"/>
