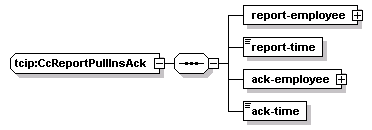

complexType tcip:CcReportPullInsAck

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	report-employee report-time ack-employee ack-time
used by	element  tcip:ccReportPullInsAck
source	<xs:complexType name="CcReportPullInsAck">   <xs:sequence>     <xs:element name="report-employee" type="CPTEmployeeIden"/>     <xs:element name="report-time" type="CPT-DateTime"/>     <xs:element name="ack-employee" type="CPTEmployeeIden"/>     <xs:element name="ack-time" type="CPT-DateTime"/>   </xs:sequence> </xs:complexType>

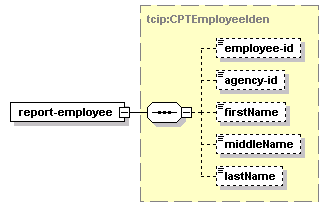

element tcip:CcReportPullInsAck/report-employee

diagram
type	tcip:CPTEmployeeIden
properties	isRef  0 content  complex
children	employee-id agency-id firstName middleName lastName
source	<xs:element name="report-employee" type="CPTEmployeeIden"/>

element tcip:CcReportPullInsAck/report-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="report-time" type="CPT-DateTime"/>

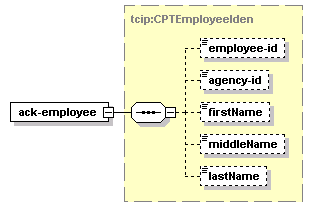

element tcip:CcReportPullInsAck/ack-employee

diagram
type	tcip:CPTEmployeeIden
properties	isRef  0 content  complex
children	employee-id agency-id firstName middleName lastName
source	<xs:element name="ack-employee" type="CPTEmployeeIden"/>

element tcip:CcReportPullInsAck/ack-time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="ack-time" type="CPT-DateTime"/>
