complexType tcip:PIFoundItem
diagram
namespace http://www.TCIP-Adopted-03-00-01
children item-type item-keywords item-color item-description controlled-substance ammunition firearm explosive hazmat perishable live-plant human found-ptvID found-stoppoint found-run found-operator found-employeeID found-location found-time reported-time found-item-identifier associated-lost-item disposition cust-finder-address cust-finder-phone cust-finder-id empl-finder ext-agency-name ext-agency-contact-first-name ext-agency-contact-middle-name ext-agency-contact-last-name ext-agency-phone ext-agency-identification stored-location stored-facility stored-room-number stored-row-number stored-bin-number storage-description localPIFoundItem
used by
elements tcip:PiFoundItems/found-items/found-item tcip:PiReportFoundItems/reports/report
source <xs:complexType name="PIFoundItem">
  <xs:sequence>
    <xs:element name="item-type" type="CPT-Footnote"/>
    <xs:element name="item-keywords" type="CPT-Footnote"/>
    <xs:element name="item-color" type="CPT-Footnote" minOccurs="0"/>
    <xs:element name="item-description" type="CPT-Footnote"/>
    <xs:element name="controlled-substance" type="CPT-Boolean"/>
    <xs:element name="ammunition" type="CPT-Boolean"/>
    <xs:element name="firearm" type="CPT-Boolean"/>
    <xs:element name="explosive" type="CPT-Boolean"/>
    <xs:element name="hazmat" type="CPT-Boolean"/>
    <xs:element name="perishable" type="CPT-Boolean"/>
    <xs:element name="live-plant" type="CPT-Boolean"/>
    <xs:element name="human" type="CPT-Boolean"/>
    <xs:element name="found-ptvID" type="CPTVehicleIden" minOccurs="0"/>
    <xs:element name="found-stoppoint" type="CPTStoppointIden" minOccurs="0"/>
    <xs:element name="found-run" type="SCHRunIden" minOccurs="0"/>
    <xs:element name="found-operator" type="CPTOperatorIden" minOccurs="0"/>
    <xs:element name="found-employeeID" type="CPTEmployeeIden" minOccurs="0"/>
    <xs:element name="found-location" type="lrms:AddressPoint"/>
    <xs:element name="found-time" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="reported-time" type="CPT-DateTime"/>
    <xs:element name="found-item-identifier" type="PI-LostFoundItemID"/>
    <xs:element name="associated-lost-item" type="PI-LostFoundItemID" minOccurs="0"/>
    <xs:element name="disposition" type="PI-LostItemDisposition"/>
    <xs:element name="cust-finder-address" type="lrms:AddressPoint" minOccurs="0"/>
    <xs:element name="cust-finder-phone" type="IM-HomePhone" minOccurs="0"/>
    <xs:element name="cust-finder-id" type="PITravelerIden" minOccurs="0"/>
    <xs:element name="empl-finder" type="CPTEmployeeIden" minOccurs="0"/>
    <xs:element name="ext-agency-name" type="CPT-AgencyName" minOccurs="0"/>
    <xs:element name="ext-agency-contact-first-name" type="CPT-PersonFirstName" minOccurs="0"/>
    <xs:element name="ext-agency-contact-middle-name" type="CPT-PersonMiddleName" minOccurs="0"/>
    <xs:element name="ext-agency-contact-last-name" type="CPT-PersonLastName" minOccurs="0"/>
    <xs:element name="ext-agency-phone" type="IM-WorkPhone" minOccurs="0"/>
    <xs:element name="ext-agency-identification" type="CPT-Footnote" minOccurs="0"/>
    <xs:element name="stored-location" type="lrms:AddressPoint" minOccurs="0"/>
    <xs:element name="stored-facility" type="CPTTransitFacilityIden" minOccurs="0"/>
    <xs:element name="stored-room-number" type="CPT-GenericCounter" minOccurs="0"/>
    <xs:element name="stored-row-number" type="CPT-GenericCounter" minOccurs="0"/>
    <xs:element name="stored-bin-number" type="CPT-GenericCounter" minOccurs="0"/>
    <xs:element name="storage-description" type="CPT-Footnote" minOccurs="0"/>
    <xs:element name="localPIFoundItem" type="local:PIFoundItem" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:PIFoundItem/item-type
diagram
type tcip:CPT-Footnote
properties
isRef 0
content simple
facets
minLength 0
maxLength 255
source <xs:element name="item-type" type="CPT-Footnote"/>

element tcip:PIFoundItem/item-keywords
diagram
type tcip:CPT-Footnote
properties
isRef 0
content simple
facets
minLength 0
maxLength 255
source <xs:element name="item-keywords" type="CPT-Footnote"/>

element tcip:PIFoundItem/item-color
diagram
type tcip:CPT-Footnote
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 0
maxLength 255
source <xs:element name="item-color" type="CPT-Footnote" minOccurs="0"/>

element tcip:PIFoundItem/item-description
diagram
type tcip:CPT-Footnote
properties
isRef 0
content simple
facets
minLength 0
maxLength 255
source <xs:element name="item-description" type="CPT-Footnote"/>

element tcip:PIFoundItem/controlled-substance
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="controlled-substance" type="CPT-Boolean"/>

element tcip:PIFoundItem/ammunition
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="ammunition" type="CPT-Boolean"/>

element tcip:PIFoundItem/firearm
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="firearm" type="CPT-Boolean"/>

element tcip:PIFoundItem/explosive
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="explosive" type="CPT-Boolean"/>

element tcip:PIFoundItem/hazmat
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="hazmat" type="CPT-Boolean"/>

element tcip:PIFoundItem/perishable
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="perishable" type="CPT-Boolean"/>

element tcip:PIFoundItem/live-plant
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="live-plant" type="CPT-Boolean"/>

element tcip:PIFoundItem/human
diagram
type tcip:CPT-Boolean
properties
isRef 0
content simple
source <xs:element name="human" type="CPT-Boolean"/>

element tcip:PIFoundItem/found-ptvID
diagram
type tcip:CPTVehicleIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children vehicle-id agency-id vin
source <xs:element name="found-ptvID" type="CPTVehicleIden" minOccurs="0"/>

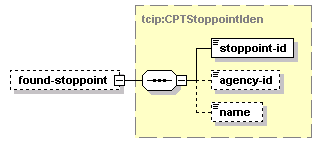

element tcip:PIFoundItem/found-stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children stoppoint-id agency-id name
source <xs:element name="found-stoppoint" type="CPTStoppointIden" minOccurs="0"/>

element tcip:PIFoundItem/found-run
diagram
type tcip:SCHRunIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children run-id agency-id designator
source <xs:element name="found-run" type="SCHRunIden" minOccurs="0"/>

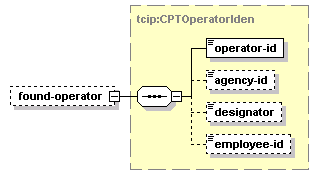

element tcip:PIFoundItem/found-operator
diagram
type tcip:CPTOperatorIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children operator-id agency-id designator employee-id
source <xs:element name="found-operator" type="CPTOperatorIden" minOccurs="0"/>

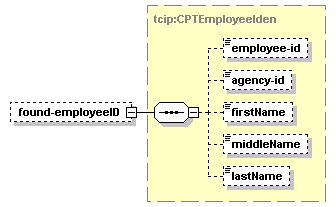

element tcip:PIFoundItem/found-employeeID
diagram
type tcip:CPTEmployeeIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children employee-id agency-id firstName middleName lastName
source <xs:element name="found-employeeID" type="CPTEmployeeIden" minOccurs="0"/>

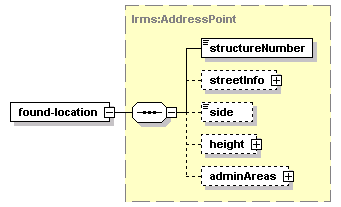

element tcip:PIFoundItem/found-location
diagram
type lrms:AddressPoint
properties
isRef 0
content complex
children structureNumber streetInfo side height adminAreas
source <xs:element name="found-location" type="lrms:AddressPoint"/>

element tcip:PIFoundItem/found-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="found-time" type="CPT-DateTime" minOccurs="0"/>

element tcip:PIFoundItem/reported-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="reported-time" type="CPT-DateTime"/>

element tcip:PIFoundItem/found-item-identifier
diagram
type tcip:PI-LostFoundItemID
properties
isRef 0
content simple
source <xs:element name="found-item-identifier" type="PI-LostFoundItemID"/>

element tcip:PIFoundItem/associated-lost-item
diagram
type tcip:PI-LostFoundItemID
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="associated-lost-item" type="PI-LostFoundItemID" minOccurs="0"/>

element tcip:PIFoundItem/disposition
diagram
type tcip:PI-LostItemDisposition
properties
isRef 0
content simple
source <xs:element name="disposition" type="PI-LostItemDisposition"/>

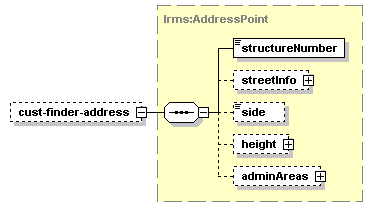

element tcip:PIFoundItem/cust-finder-address
diagram
type lrms:AddressPoint
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children structureNumber streetInfo side height adminAreas
source <xs:element name="cust-finder-address" type="lrms:AddressPoint" minOccurs="0"/>

element tcip:PIFoundItem/cust-finder-phone
diagram
type tcip:IM-HomePhone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 16
source <xs:element name="cust-finder-phone" type="IM-HomePhone" minOccurs="0"/>

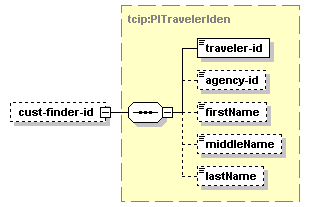

element tcip:PIFoundItem/cust-finder-id
diagram
type tcip:PITravelerIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children traveler-id agency-id firstName middleName lastName
source <xs:element name="cust-finder-id" type="PITravelerIden" minOccurs="0"/>

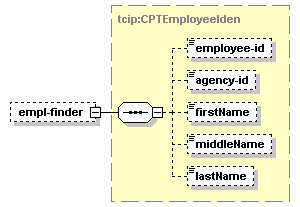

element tcip:PIFoundItem/empl-finder
diagram
type tcip:CPTEmployeeIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children employee-id agency-id firstName middleName lastName
source <xs:element name="empl-finder" type="CPTEmployeeIden" minOccurs="0"/>

element tcip:PIFoundItem/ext-agency-name
diagram
type tcip:CPT-AgencyName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 30
source <xs:element name="ext-agency-name" type="CPT-AgencyName" minOccurs="0"/>

element tcip:PIFoundItem/ext-agency-contact-first-name
diagram
type tcip:CPT-PersonFirstName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 30
source <xs:element name="ext-agency-contact-first-name" type="CPT-PersonFirstName" minOccurs="0"/>

element tcip:PIFoundItem/ext-agency-contact-middle-name
diagram
type tcip:CPT-PersonMiddleName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 30
source <xs:element name="ext-agency-contact-middle-name" type="CPT-PersonMiddleName" minOccurs="0"/>

element tcip:PIFoundItem/ext-agency-contact-last-name
diagram
type tcip:CPT-PersonLastName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 30
source <xs:element name="ext-agency-contact-last-name" type="CPT-PersonLastName" minOccurs="0"/>

element tcip:PIFoundItem/ext-agency-phone
diagram
type tcip:IM-WorkPhone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 16
source <xs:element name="ext-agency-phone" type="IM-WorkPhone" minOccurs="0"/>

element tcip:PIFoundItem/ext-agency-identification
diagram
type tcip:CPT-Footnote
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 0
maxLength 255
source <xs:element name="ext-agency-identification" type="CPT-Footnote" minOccurs="0"/>

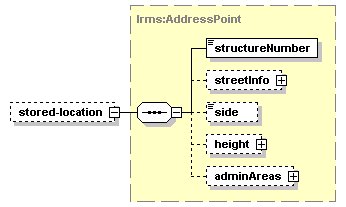

element tcip:PIFoundItem/stored-location
diagram
type lrms:AddressPoint
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children structureNumber streetInfo side height adminAreas
source <xs:element name="stored-location" type="lrms:AddressPoint" minOccurs="0"/>

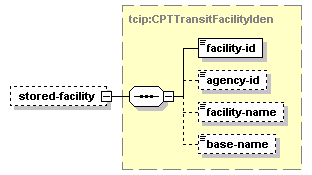

element tcip:PIFoundItem/stored-facility
diagram
type tcip:CPTTransitFacilityIden
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children facility-id agency-id facility-name base-name
source <xs:element name="stored-facility" type="CPTTransitFacilityIden" minOccurs="0"/>

element tcip:PIFoundItem/stored-room-number
diagram
type tcip:CPT-GenericCounter
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="stored-room-number" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:PIFoundItem/stored-row-number
diagram
type tcip:CPT-GenericCounter
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="stored-row-number" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:PIFoundItem/stored-bin-number
diagram
type tcip:CPT-GenericCounter
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="stored-bin-number" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:PIFoundItem/storage-description
diagram
type tcip:CPT-Footnote
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 0
maxLength 255
source <xs:element name="storage-description" type="CPT-Footnote" minOccurs="0"/>

element tcip:PIFoundItem/localPIFoundItem
diagram
type PIFoundItem
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localPIFoundItem" type="local:PIFoundItem" minOccurs="0"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
