complexType tcip:PiReportFoundItems

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	time-sent reports
used by	element  tcip:piReportFoundItems
source	<xs:complexType name="PiReportFoundItems">   <xs:sequence>     <xs:element name="time-sent" type="CPT-DateTime"/>     <xs:element name="reports">       <xs:complexType>         <xs:sequence maxOccurs="500">           <xs:element name="report" type="PIFoundItem"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:PiReportFoundItems/time-sent

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time-sent" type="CPT-DateTime"/>

element tcip:PiReportFoundItems/reports

diagram
properties	isRef  0 content  complex
children	report
source	<xs:element name="reports">   <xs:complexType>     <xs:sequence maxOccurs="500">       <xs:element name="report" type="PIFoundItem"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:PiReportFoundItems/reports/report

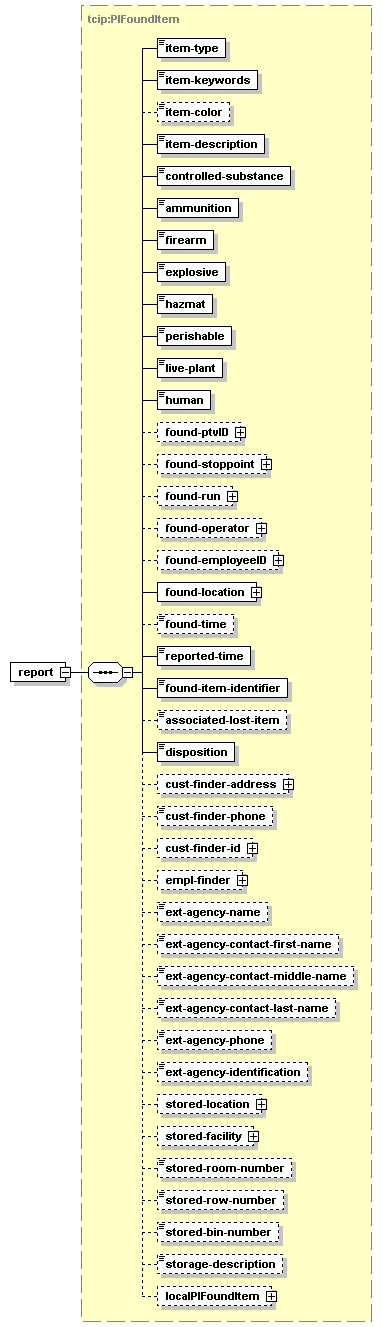

diagram
type	tcip:PIFoundItem
properties	isRef  0 content  complex
children	item-type item-keywords item-color item-description controlled-substance ammunition firearm explosive hazmat perishable live-plant human found-ptvID found-stoppoint found-run found-operator found-employeeID found-location found-time reported-time found-item-identifier associated-lost-item disposition cust-finder-address cust-finder-phone cust-finder-id empl-finder ext-agency-name ext-agency-contact-first-name ext-agency-contact-middle-name ext-agency-contact-last-name ext-agency-phone ext-agency-identification stored-location stored-facility stored-room-number stored-row-number stored-bin-number storage-description localPIFoundItem
source	<xs:element name="report" type="PIFoundItem"/>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
