complexType tcip:ImInitialReportAck

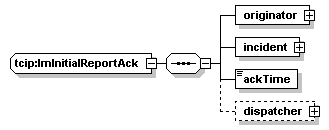

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	originator incident ackTime dispatcher
used by	element  tcip:imInitialReportAck
source	<xs:complexType name="ImInitialReportAck">   <xs:sequence>     <xs:element name="originator" type="CPTEmployeeIden"/>     <xs:element name="incident" type="IMIncidentIden"/>     <xs:element name="ackTime" type="CPT-DateTime"/>     <xs:element name="dispatcher" type="CPTEmployeeIden" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:ImInitialReportAck/originator

diagram
type	tcip:CPTEmployeeIden
properties	isRef  0 content  complex
children	employee-id agency-id firstName middleName lastName
source	<xs:element name="originator" type="CPTEmployeeIden"/>

element tcip:ImInitialReportAck/incident

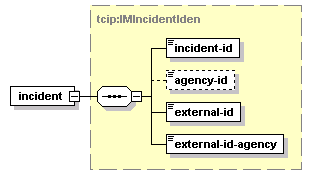

diagram
type	tcip:IMIncidentIden
properties	isRef  0 content  complex
children	incident-id agency-id external-id external-id-agency
source	<xs:element name="incident" type="IMIncidentIden"/>

element tcip:ImInitialReportAck/ackTime

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="ackTime" type="CPT-DateTime"/>

element tcip:ImInitialReportAck/dispatcher

diagram
type	tcip:CPTEmployeeIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	employee-id agency-id firstName middleName lastName
source	<xs:element name="dispatcher" type="CPTEmployeeIden" minOccurs="0"/>
