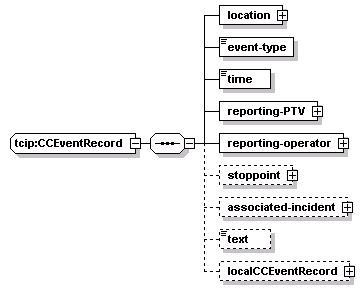

complexType tcip:CCEventRecord

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	location event-type time reporting-PTV reporting-operator stoppoint associated-incident text localCCEventRecord
used by	elements  tcip:CcReportServiceEventAck/acked-event tcip:CcReportServiceEvent/event-record tcip:CcPTVPerformanceData/service-events/service-event
source	<xs:complexType name="CCEventRecord">   <xs:sequence>     <xs:element name="location" type="lrms:GeoLocation"/>     <xs:element name="event-type" type="CC-ServiceEventType"/>     <xs:element name="time" type="CPT-DateTime"/>     <xs:element name="reporting-PTV" type="CPTVehicleIden"/>     <xs:element name="reporting-operator" type="CPTOperatorIden"/>     <xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>     <xs:element name="associated-incident" type="IMIncidentIden" minOccurs="0"/>     <xs:element name="text" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="localCCEventRecord" type="local:CCEventRecord" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CCEventRecord/location

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="location" type="lrms:GeoLocation"/>

element tcip:CCEventRecord/event-type

diagram
type	tcip:CC-ServiceEventType
properties	isRef  0 content  simple
source	<xs:element name="event-type" type="CC-ServiceEventType"/>

element tcip:CCEventRecord/time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time" type="CPT-DateTime"/>

element tcip:CCEventRecord/reporting-PTV

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="reporting-PTV" type="CPTVehicleIden"/>

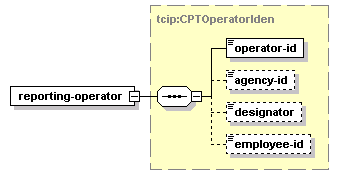

element tcip:CCEventRecord/reporting-operator

diagram
type	tcip:CPTOperatorIden
properties	isRef  0 content  complex
children	operator-id agency-id designator employee-id
source	<xs:element name="reporting-operator" type="CPTOperatorIden"/>

element tcip:CCEventRecord/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>

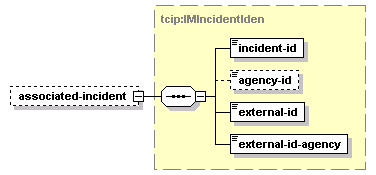

element tcip:CCEventRecord/associated-incident

diagram
type	tcip:IMIncidentIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	incident-id agency-id external-id external-id-agency
source	<xs:element name="associated-incident" type="IMIncidentIden" minOccurs="0"/>

element tcip:CCEventRecord/text

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="text" type="CPT-Footnote" minOccurs="0"/>

element tcip:CCEventRecord/localCCEventRecord

diagram
type	CCEventRecord
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localCCEventRecord" type="local:CCEventRecord" minOccurs="0"/>
