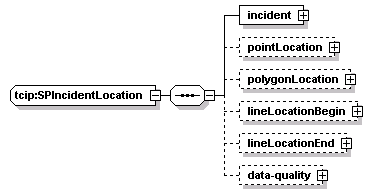

complexType tcip:SPIncidentLocation
diagram
namespace http://www.TCIP-Adopted-03-00-01
children incident pointLocation polygonLocation lineLocationBegin lineLocationEnd data-quality
used by
element tcip:SpGeolocationData/incident-locations/incident-location
source <xs:complexType name="SPIncidentLocation">
  <xs:sequence>
    <xs:element name="incident" type="IMIncidentIden"/>
    <xs:element name="pointLocation" type="lrms:GeoLocation" minOccurs="0"/>
    <xs:element name="polygonLocation" type="SPPolygon" minOccurs="0"/>
    <xs:element name="lineLocationBegin" type="lrms:GeoLocation" minOccurs="0"/>
    <xs:element name="lineLocationEnd" type="lrms:GeoLocation" minOccurs="0"/>
    <xs:element name="data-quality" type="SPDataQuality" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

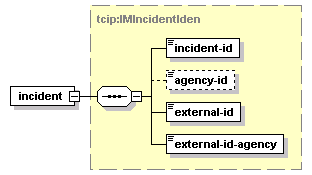

element tcip:SPIncidentLocation/incident
diagram
type tcip:IMIncidentIden
properties
isRef 0
content complex
children incident-id agency-id external-id external-id-agency
source <xs:element name="incident" type="IMIncidentIden"/>

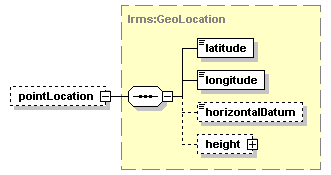

element tcip:SPIncidentLocation/pointLocation
diagram
type lrms:GeoLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children latitude longitude horizontalDatum height
source <xs:element name="pointLocation" type="lrms:GeoLocation" minOccurs="0"/>

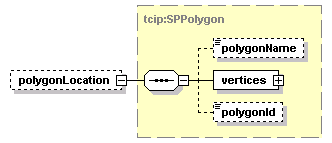

element tcip:SPIncidentLocation/polygonLocation
diagram
type tcip:SPPolygon
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children polygonName vertices polygonId
source <xs:element name="polygonLocation" type="SPPolygon" minOccurs="0"/>

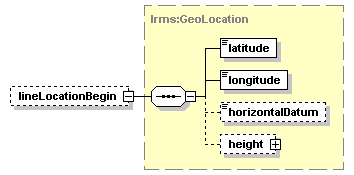

element tcip:SPIncidentLocation/lineLocationBegin
diagram
type lrms:GeoLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children latitude longitude horizontalDatum height
source <xs:element name="lineLocationBegin" type="lrms:GeoLocation" minOccurs="0"/>

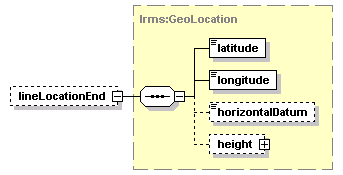

element tcip:SPIncidentLocation/lineLocationEnd
diagram
type lrms:GeoLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children latitude longitude horizontalDatum height
source <xs:element name="lineLocationEnd" type="lrms:GeoLocation" minOccurs="0"/>

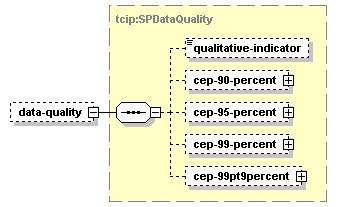

element tcip:SPIncidentLocation/data-quality
diagram
type tcip:SPDataQuality
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children qualitative-indicator cep-90-percent cep-95-percent cep-99-percent cep-99pt9percent
source <xs:element name="data-quality" type="SPDataQuality" minOccurs="0"/>
