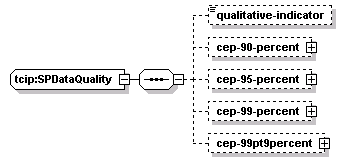

complexType tcip:SPDataQuality
diagram
namespace http://www.TCIP-Adopted-03-00-01
children qualitative-indicator cep-90-percent cep-95-percent cep-99-percent cep-99pt9percent
used by
elements tcip:CcLocationReport/data-quality tcip:CcManualAlarm/data-quality tcip:CcPassengerAlarm/data-quality tcip:ObLocation/data-quality tcip:SPFacilityGeoLoc/data-quality tcip:SPIncidentLocation/data-quality tcip:SPSegmentGeolocation/data-quality tcip:SPStopGeoLoc/data-quality tcip:SPTimepointGeoLoc/data-quality tcip:TSPStatus/loc-quality
source <xs:complexType name="SPDataQuality">
  <xs:sequence>
    <xs:element name="qualitative-indicator" type="SP-QualityLevel" minOccurs="0"/>
    <xs:element name="cep-90-percent" type="lrms:Distance" minOccurs="0"/>
    <xs:element name="cep-95-percent" type="lrms:Distance" minOccurs="0"/>
    <xs:element name="cep-99-percent" type="lrms:Distance" minOccurs="0"/>
    <xs:element name="cep-99pt9percent" type="lrms:Distance" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:SPDataQuality/qualitative-indicator
diagram
type tcip:SP-QualityLevel
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="qualitative-indicator" type="SP-QualityLevel" minOccurs="0"/>

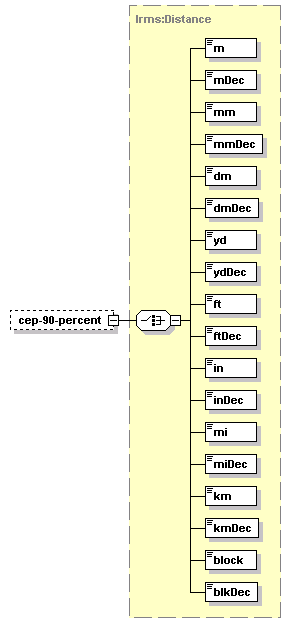

element tcip:SPDataQuality/cep-90-percent
diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="cep-90-percent" type="lrms:Distance" minOccurs="0"/>

element tcip:SPDataQuality/cep-95-percent
diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="cep-95-percent" type="lrms:Distance" minOccurs="0"/>

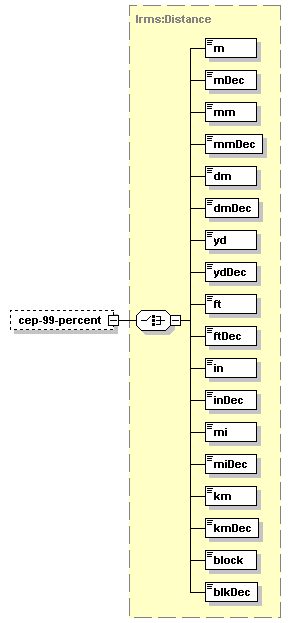

element tcip:SPDataQuality/cep-99-percent
diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="cep-99-percent" type="lrms:Distance" minOccurs="0"/>

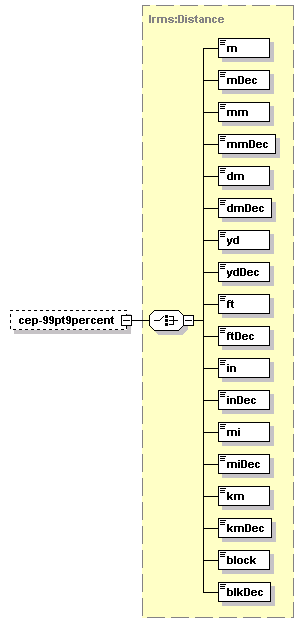

element tcip:SPDataQuality/cep-99pt9percent
diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="cep-99pt9percent" type="lrms:Distance" minOccurs="0"/>
