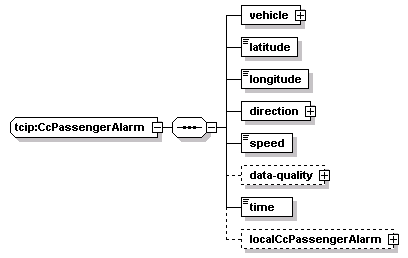

complexType tcip:CcPassengerAlarm

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	vehicle latitude longitude direction speed data-quality time localCcPassengerAlarm
used by	element  tcip:ccPassengerAlarm
source	<xs:complexType name="CcPassengerAlarm">   <xs:sequence>     <xs:element name="vehicle" type="CPTVehicleIden"/>     <xs:element name="latitude" type="lrms:Latitude"/>     <xs:element name="longitude" type="lrms:Longitude"/>     <xs:element name="direction" type="lrms:Angle"/>     <!-- direction of travel [deg] -->     <xs:element name="speed" type="OB-J1587-VelocityVectorSpeed"/>     <xs:element name="data-quality" type="SPDataQuality" minOccurs="0"/>     <xs:element name="time" type="CPT-DateTime"/>     <xs:element name="localCcPassengerAlarm" type="local:CcPassengerAlarm" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CcPassengerAlarm/vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="vehicle" type="CPTVehicleIden"/>

element tcip:CcPassengerAlarm/latitude

diagram
type	lrms:Latitude
properties	isRef  0 content  simple
facets	minInclusive  -90000000 maxInclusive  +90000000
source	<xs:element name="latitude" type="lrms:Latitude"/>

element tcip:CcPassengerAlarm/longitude

diagram
type	lrms:Longitude
properties	isRef  0 content  simple
facets	minInclusive  -180000000 maxInclusive  +180000000
source	<xs:element name="longitude" type="lrms:Longitude"/>

element tcip:CcPassengerAlarm/direction

diagram
type	lrms:Angle
properties	isRef  0 content  complex
children	deg rad cdeg
source	<xs:element name="direction" type="lrms:Angle"/>

element tcip:CcPassengerAlarm/speed

diagram
type	tcip:OB-J1587-VelocityVectorSpeed
properties	isRef  0 content  simple
source	<xs:element name="speed" type="OB-J1587-VelocityVectorSpeed"/>

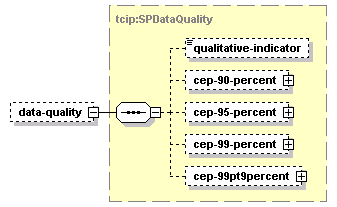

element tcip:CcPassengerAlarm/data-quality

diagram
type	tcip:SPDataQuality
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	qualitative-indicator cep-90-percent cep-95-percent cep-99-percent cep-99pt9percent
source	<xs:element name="data-quality" type="SPDataQuality" minOccurs="0"/>

element tcip:CcPassengerAlarm/time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time" type="CPT-DateTime"/>

element tcip:CcPassengerAlarm/localCcPassengerAlarm

diagram
type	CcPassengerAlarm
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localCcPassengerAlarm" type="local:CcPassengerAlarm" minOccurs="0"/>
