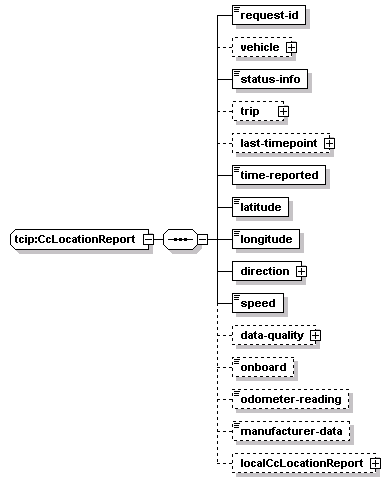

complexType tcip:CcLocationReport

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	request-id vehicle status-info trip last-timepoint time-reported latitude longitude direction speed data-quality onboard odometer-reading manufacturer-data localCcLocationReport
used by	element  tcip:ccLocationReport
source	<xs:complexType name="CcLocationReport">   <xs:sequence>     <xs:element name="request-id" type="CPT-RequestIdentifier"/>     <!-- from subscription request, -->     <xs:element name="vehicle" type="CPTVehicleIden" minOccurs="0"/>     <xs:element name="status-info" type="CC-VehicleStatusBitmap"/>     <xs:element name="trip" type="SCHTripIden" minOccurs="0"/>     <xs:element name="last-timepoint" type="SCHTimepointIden" minOccurs="0"/>     <xs:element name="time-reported" type="CPT-DateTime"/>     <xs:element name="latitude" type="lrms:Latitude"/>     <xs:element name="longitude" type="lrms:Longitude"/>     <xs:element name="direction" type="lrms:Angle"/>     <!-- direction of travel [deg] -->     <xs:element name="speed" type="OB-J1587-VelocityVectorSpeed"/>     <xs:element name="data-quality" type="SPDataQuality" minOccurs="0"/>     <xs:element name="onboard" type="OB-J1587-PassengerCounterPatronCount" minOccurs="0"/>     <xs:element name="odometer-reading" type="CPT-GenericCounter" minOccurs="0"/>     <xs:element name="manufacturer-data" type="CC-ManufacturerData" minOccurs="0"/>     <xs:element name="localCcLocationReport" type="local:CcLocationReport" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CcLocationReport/request-id

diagram
type	tcip:CPT-RequestIdentifier
properties	isRef  0 content  simple
source	<xs:element name="request-id" type="CPT-RequestIdentifier"/>

element tcip:CcLocationReport/vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="vehicle" type="CPTVehicleIden" minOccurs="0"/>

element tcip:CcLocationReport/status-info

diagram
type	tcip:CC-VehicleStatusBitmap
properties	isRef  0 content  simple
source	<xs:element name="status-info" type="CC-VehicleStatusBitmap"/>

element tcip:CcLocationReport/trip

diagram
type	tcip:SCHTripIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	trip-id agency-id designator
source	<xs:element name="trip" type="SCHTripIden" minOccurs="0"/>

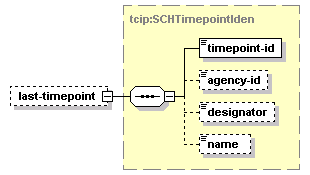

element tcip:CcLocationReport/last-timepoint

diagram
type	tcip:SCHTimepointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	timepoint-id agency-id designator name
source	<xs:element name="last-timepoint" type="SCHTimepointIden" minOccurs="0"/>

element tcip:CcLocationReport/time-reported

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time-reported" type="CPT-DateTime"/>

element tcip:CcLocationReport/latitude

diagram
type	lrms:Latitude
properties	isRef  0 content  simple
facets	minInclusive  -90000000 maxInclusive  +90000000
source	<xs:element name="latitude" type="lrms:Latitude"/>

element tcip:CcLocationReport/longitude

diagram
type	lrms:Longitude
properties	isRef  0 content  simple
facets	minInclusive  -180000000 maxInclusive  +180000000
source	<xs:element name="longitude" type="lrms:Longitude"/>

element tcip:CcLocationReport/direction

diagram
type	lrms:Angle
properties	isRef  0 content  complex
children	deg rad cdeg
source	<xs:element name="direction" type="lrms:Angle"/>

element tcip:CcLocationReport/speed

diagram
type	tcip:OB-J1587-VelocityVectorSpeed
properties	isRef  0 content  simple
source	<xs:element name="speed" type="OB-J1587-VelocityVectorSpeed"/>

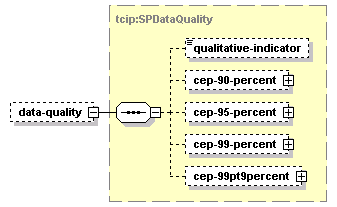

element tcip:CcLocationReport/data-quality

diagram
type	tcip:SPDataQuality
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	qualitative-indicator cep-90-percent cep-95-percent cep-99-percent cep-99pt9percent
source	<xs:element name="data-quality" type="SPDataQuality" minOccurs="0"/>

element tcip:CcLocationReport/onboard

diagram
type	tcip:OB-J1587-PassengerCounterPatronCount
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="onboard" type="OB-J1587-PassengerCounterPatronCount" minOccurs="0"/>

element tcip:CcLocationReport/odometer-reading

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="odometer-reading" type="CPT-GenericCounter" minOccurs="0"/>

element tcip:CcLocationReport/manufacturer-data

diagram
type	tcip:CC-ManufacturerData
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="manufacturer-data" type="CC-ManufacturerData" minOccurs="0"/>

element tcip:CcLocationReport/localCcLocationReport

diagram
type	CcLocationReport
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localCcLocationReport" type="local:CcLocationReport" minOccurs="0"/>
