complexType tcip:SchMasterScheduleVersionSub

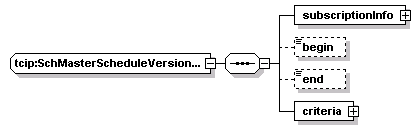

diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo begin end criteria
used by
element tcip:schMasterScheduleVersionSub
source <xs:complexType name="SchMasterScheduleVersionSub">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="begin" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="end" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="criteria">
      <xs:complexType>
        <xs:choice>
          <xs:element name="agencies">
            <xs:complexType>
              <xs:sequence maxOccurs="20">
                <xs:element name="agency" type="CPT-AgencyID"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="routes">
            <xs:complexType>
              <xs:sequence maxOccurs="100">
                <xs:element name="route" type="SCHRouteIden"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:choice>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:SchMasterScheduleVersionSub/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:SchMasterScheduleVersionSub/begin
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="begin" type="CPT-DateTime" minOccurs="0"/>

element tcip:SchMasterScheduleVersionSub/end
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="end" type="CPT-DateTime" minOccurs="0"/>

element tcip:SchMasterScheduleVersionSub/criteria
diagram
properties
isRef 0
content complex
children agencies routes
source <xs:element name="criteria">
  <xs:complexType>
    <xs:choice>
      <xs:element name="agencies">
        <xs:complexType>
          <xs:sequence maxOccurs="20">
            <xs:element name="agency" type="CPT-AgencyID"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="routes">
        <xs:complexType>
          <xs:sequence maxOccurs="100">
            <xs:element name="route" type="SCHRouteIden"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

element tcip:SchMasterScheduleVersionSub/criteria/agencies
diagram
properties
isRef 0
content complex
children agency
source <xs:element name="agencies">
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="agency" type="CPT-AgencyID"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SchMasterScheduleVersionSub/criteria/agencies/agency
diagram
type tcip:CPT-AgencyID
properties
isRef 0
content simple
source <xs:element name="agency" type="CPT-AgencyID"/>

element tcip:SchMasterScheduleVersionSub/criteria/routes
diagram
properties
isRef 0
content complex
children route
source <xs:element name="routes">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SchMasterScheduleVersionSub/criteria/routes/route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="route" type="SCHRouteIden"/>
