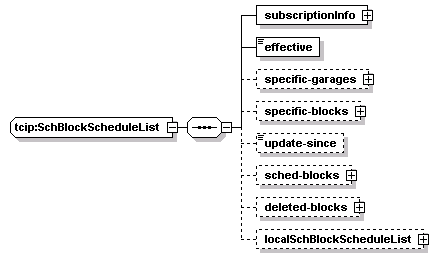

complexType tcip:SchBlockScheduleList
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo effective specific-garages specific-blocks update-since sched-blocks deleted-blocks localSchBlockScheduleList
used by
element tcip:schBlockScheduleList
source <xs:complexType name="SchBlockScheduleList">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="effective" type="CPT-DateTime"/>
    <xs:element name="specific-garages" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="specific-garage" type="CPTTransitFacilityIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="specific-blocks" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="specific-block" type="SCHBlockIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="sched-blocks" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="sched-block" type="SCHBlockScheduleEntry"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="deleted-blocks" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="deleted-block" type="SCHBlockIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localSchBlockScheduleList" type="local:SchBlockScheduleList" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:SchBlockScheduleList/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:SchBlockScheduleList/effective
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="effective" type="CPT-DateTime"/>

element tcip:SchBlockScheduleList/specific-garages
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children specific-garage
source <xs:element name="specific-garages" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="specific-garage" type="CPTTransitFacilityIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

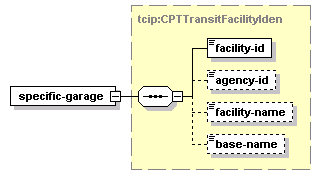

element tcip:SchBlockScheduleList/specific-garages/specific-garage
diagram
type tcip:CPTTransitFacilityIden
properties
isRef 0
content complex
children facility-id agency-id facility-name base-name
source <xs:element name="specific-garage" type="CPTTransitFacilityIden"/>

element tcip:SchBlockScheduleList/specific-blocks
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children specific-block
source <xs:element name="specific-blocks" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="specific-block" type="SCHBlockIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SchBlockScheduleList/specific-blocks/specific-block
diagram
type tcip:SCHBlockIden
properties
isRef 0
content complex
children block-id agency-id block-designator block-name
source <xs:element name="specific-block" type="SCHBlockIden"/>

element tcip:SchBlockScheduleList/update-since
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>

element tcip:SchBlockScheduleList/sched-blocks
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children sched-block
source <xs:element name="sched-blocks" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="sched-block" type="SCHBlockScheduleEntry"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

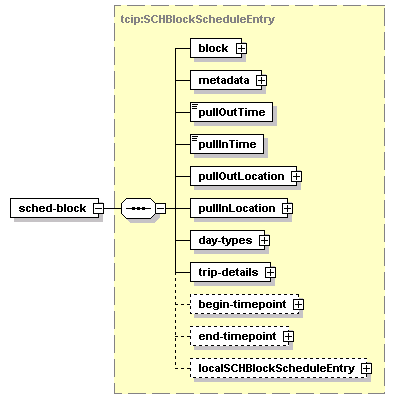

element tcip:SchBlockScheduleList/sched-blocks/sched-block
diagram
type tcip:SCHBlockScheduleEntry
properties
isRef 0
content complex
children block metadata pullOutTime pullInTime pullOutLocation pullInLocation day-types trip-details begin-timepoint end-timepoint localSCHBlockScheduleEntry
source <xs:element name="sched-block" type="SCHBlockScheduleEntry"/>

element tcip:SchBlockScheduleList/deleted-blocks
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children deleted-block
source <xs:element name="deleted-blocks" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="deleted-block" type="SCHBlockIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

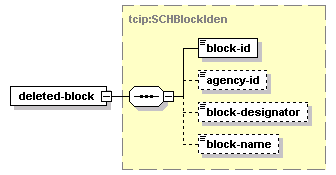

element tcip:SchBlockScheduleList/deleted-blocks/deleted-block
diagram
type tcip:SCHBlockIden
properties
isRef 0
content complex
children block-id agency-id block-designator block-name
source <xs:element name="deleted-block" type="SCHBlockIden"/>

element tcip:SchBlockScheduleList/localSchBlockScheduleList
diagram
type SchBlockScheduleList
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localSchBlockScheduleList" type="local:SchBlockScheduleList" minOccurs="0"/>
