complexType tcip:SCHBlockIden

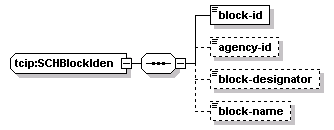

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	block-id agency-id block-designator block-name
used by	elements  tcip:SCHValidationError/affected-blocks/affected-block tcip:SCHOperatorAssignment/associated-blocks/associated-block tcip:TSPPRGInputsCCEntry/block tcip:SCHVehicleAssignment/block tcip:SCHTripInfo/block tcip:SCHPullInOutInfo/block tcip:SCHBlockScheduleEntry/block tcip:OBStoppointRecord/block tcip:IMPTVehicleInvolved/block tcip:CCVehicleAssignmentChange/block tcip:CCLogOnOperator/block tcip:CCBlockWorkRecord/block tcip:SpRouteGeoTraceSub/query/block tcip:SpRouteGeoTrace/query/block tcip:CcOperatorSignOff/block tcip:SchVehicleAssignmentFile/deleted-assignments/deleted-assignment tcip:SchPushVehicleAssignments/deleted-assignments/deleted-assignment tcip:SchVehicleAssignmentList/deleted-assignment/deleted-assignment-item tcip:SchPushBlockSchedule/deleted-blocks/deleted-block tcip:SchBlockScheduleList/deleted-blocks/deleted-block tcip:SchBlockScheduleFile/deleted-blocks/deleted-block tcip:SCHBlockSubsetsGroup/group-members/group-member tcip:SchBlockScheduleListSub/specific-blocks/specific-block tcip:SchBlockScheduleList/specific-blocks/specific-block
source	<xs:complexType name="SCHBlockIden">   <xs:sequence>     <xs:element name="block-id" type="SCH-BlockID"/>     <xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>     <xs:element name="block-designator" type="SCH-BlockDesignator" minOccurs="0"/>     <xs:element name="block-name" type="SCH-BlockName" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHBlockIden/block-id

diagram
type	tcip:SCH-BlockID
properties	isRef  0 content  simple
source	<xs:element name="block-id" type="SCH-BlockID"/>

element tcip:SCHBlockIden/agency-id

diagram
type	tcip:CPT-AgencyID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>

element tcip:SCHBlockIden/block-designator

diagram
type	tcip:SCH-BlockDesignator
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="block-designator" type="SCH-BlockDesignator" minOccurs="0"/>

element tcip:SCHBlockIden/block-name

diagram
type	tcip:SCH-BlockName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="block-name" type="SCH-BlockName" minOccurs="0"/>
