complexType tcip:SchTimepointListSub

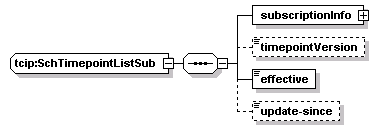

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionInfo timepointVersion effective update-since
used by	element  tcip:schTimepointListSub
source	<xs:complexType name="SchTimepointListSub">   <xs:sequence>     <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>     <xs:element name="timepointVersion" type="SCH-TimetableVersionID" minOccurs="0"/>     <xs:element name="effective" type="CPT-DateTime"/>     <!-- effective date of requested file -->     <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SchTimepointListSub/subscriptionInfo

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:SchTimepointListSub/timepointVersion

diagram
type	tcip:SCH-TimetableVersionID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="timepointVersion" type="SCH-TimetableVersionID" minOccurs="0"/>

element tcip:SchTimepointListSub/effective

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="effective" type="CPT-DateTime"/>

element tcip:SchTimepointListSub/update-since

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>
