complexType tcip:CcOperatingDataSub

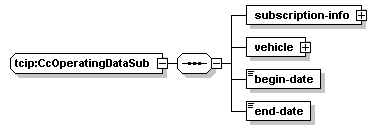

diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscription-info vehicle begin-date end-date
used by
element tcip:ccOperatingDataSub
source <xs:complexType name="CcOperatingDataSub">
  <xs:sequence>
    <xs:element name="subscription-info" type="CPTSubscriptionHeader"/>
    <xs:element name="vehicle">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="vehicle-item" type="CPTVehicleIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="begin-date" type="CPT-DateTime"/>
    <xs:element name="end-date" type="CPT-DateTime"/>
  </xs:sequence>
</xs:complexType>

element tcip:CcOperatingDataSub/subscription-info

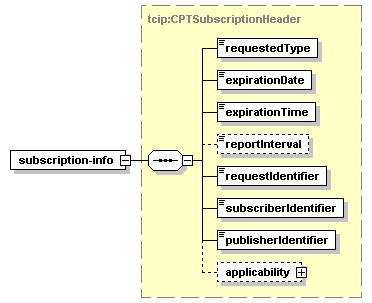

diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscription-info" type="CPTSubscriptionHeader"/>

element tcip:CcOperatingDataSub/vehicle
diagram
properties
isRef 0
content complex
children vehicle-item
source <xs:element name="vehicle">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="vehicle-item" type="CPTVehicleIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CcOperatingDataSub/vehicle/vehicle-item
diagram
type tcip:CPTVehicleIden
properties
isRef 0
content complex
children vehicle-id agency-id vin
source <xs:element name="vehicle-item" type="CPTVehicleIden"/>

element tcip:CcOperatingDataSub/begin-date
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="begin-date" type="CPT-DateTime"/>

element tcip:CcOperatingDataSub/end-date
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="end-date" type="CPT-DateTime"/>
