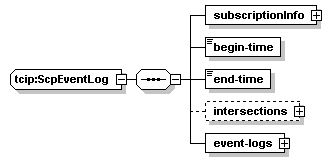

complexType tcip:ScpEventLog
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo begin-time end-time intersections event-logs
used by
element tcip:scpEventLog
source <xs:complexType name="ScpEventLog">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="begin-time" type="CPT-DateTime"/>
    <xs:element name="end-time" type="CPT-DateTime"/>
    <xs:element name="intersections" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100000">
          <xs:element name="intersection" type="CPTIntersectionIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="event-logs">
      <xs:complexType>
        <xs:sequence maxOccurs="1000000">
          <xs:element name="event-log" type="TSPEventLogEntry"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:ScpEventLog/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:ScpEventLog/begin-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="begin-time" type="CPT-DateTime"/>

element tcip:ScpEventLog/end-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="end-time" type="CPT-DateTime"/>

element tcip:ScpEventLog/intersections
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children intersection
source <xs:element name="intersections" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100000">
      <xs:element name="intersection" type="CPTIntersectionIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

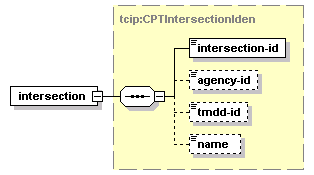

element tcip:ScpEventLog/intersections/intersection
diagram
type tcip:CPTIntersectionIden
properties
isRef 0
content complex
children intersection-id agency-id tmdd-id name
source <xs:element name="intersection" type="CPTIntersectionIden"/>

element tcip:ScpEventLog/event-logs
diagram
properties
isRef 0
content complex
children event-log
source <xs:element name="event-logs">
  <xs:complexType>
    <xs:sequence maxOccurs="1000000">
      <xs:element name="event-log" type="TSPEventLogEntry"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

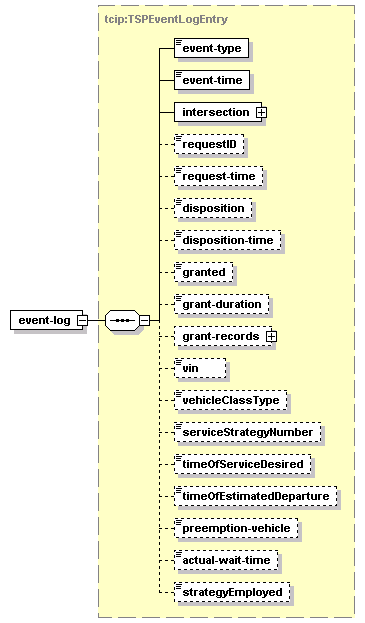

element tcip:ScpEventLog/event-logs/event-log
diagram
type tcip:TSPEventLogEntry
properties
isRef 0
content complex
children event-type event-time intersection requestID request-time disposition disposition-time granted grant-duration grant-records vin vehicleClassType serviceStrategyNumber timeOfServiceDesired timeOfEstimatedDeparture preemption-vehicle actual-wait-time strategyEmployed
source <xs:element name="event-log" type="TSPEventLogEntry"/>
