complexType tcip:TSPEventLogEntry

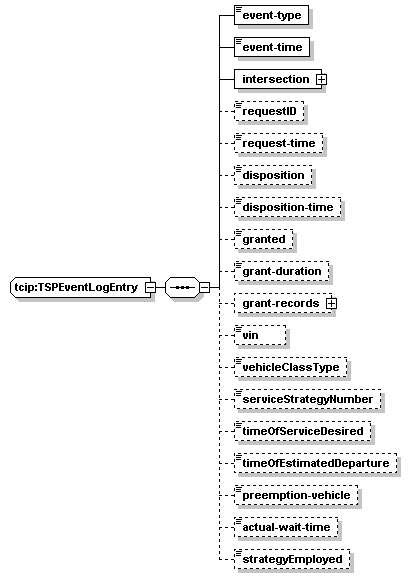

diagram
namespace http://www.TCIP-Adopted-03-00-01
children event-type event-time intersection requestID request-time disposition disposition-time granted grant-duration grant-records vin vehicleClassType serviceStrategyNumber timeOfServiceDesired timeOfEstimatedDeparture preemption-vehicle actual-wait-time strategyEmployed
used by
elements tcip:ScpEventLog/event-logs/event-log tcip:TspEventLogUnload/event-log/event-log-item
source <xs:complexType name="TSPEventLogEntry">
  <xs:sequence>
    <xs:element name="event-type" type="SCP-LoggedEventType"/>
    <xs:element name="event-time" type="CPT-DateTime"/>
    <xs:element name="intersection" type="CPTIntersectionIden"/>
    <xs:element name="requestID" type="SCP-PriorityRequestID" minOccurs="0"/>
    <xs:element name="request-time" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="disposition" type="SCP-StatusCodeForPRG" minOccurs="0"/>
    <xs:element name="disposition-time" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="granted" type="CPT-Boolean" minOccurs="0"/>
    <xs:element name="grant-duration" type="SCP-TimeInterval" minOccurs="0"/>
    <xs:element name="grant-records" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="grant-record" type="TSPGrantRecord"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="vin" type="CPT-VIN" minOccurs="0"/>
    <xs:element name="vehicleClassType" type="SCP-VehicleClassType" minOccurs="0"/>
    <xs:element name="serviceStrategyNumber" type="SCP-PriorityStrategyNumber" minOccurs="0"/>
    <xs:element name="timeOfServiceDesired" type="SCP-TimeInterval" minOccurs="0"/>
    <xs:element name="timeOfEstimatedDeparture" type="SCP-TimeInterval" minOccurs="0"/>
    <xs:element name="preemption-vehicle" type="CPT-VIN" minOccurs="0"/>
    <xs:element name="actual-wait-time" type="SCP-TimeInterval" minOccurs="0"/>
    <xs:element name="strategyEmployed" type="SCP-PriorityStrategyNumber" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element tcip:TSPEventLogEntry/event-type
diagram
type tcip:SCP-LoggedEventType
properties
isRef 0
content simple
source <xs:element name="event-type" type="SCP-LoggedEventType"/>

element tcip:TSPEventLogEntry/event-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="event-time" type="CPT-DateTime"/>

element tcip:TSPEventLogEntry/intersection

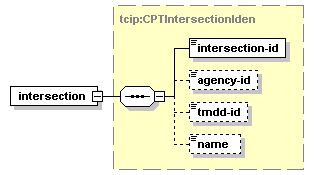

diagram
type tcip:CPTIntersectionIden
properties
isRef 0
content complex
children intersection-id agency-id tmdd-id name
source <xs:element name="intersection" type="CPTIntersectionIden"/>

element tcip:TSPEventLogEntry/requestID
diagram
type tcip:SCP-PriorityRequestID
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="requestID" type="SCP-PriorityRequestID" minOccurs="0"/>

element tcip:TSPEventLogEntry/request-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="request-time" type="CPT-DateTime" minOccurs="0"/>

element tcip:TSPEventLogEntry/disposition
diagram
type tcip:SCP-StatusCodeForPRG
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="disposition" type="SCP-StatusCodeForPRG" minOccurs="0"/>

element tcip:TSPEventLogEntry/disposition-time
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="disposition-time" type="CPT-DateTime" minOccurs="0"/>

element tcip:TSPEventLogEntry/granted
diagram
type tcip:CPT-Boolean
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="granted" type="CPT-Boolean" minOccurs="0"/>

element tcip:TSPEventLogEntry/grant-duration
diagram
type tcip:SCP-TimeInterval
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="grant-duration" type="SCP-TimeInterval" minOccurs="0"/>

element tcip:TSPEventLogEntry/grant-records
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children grant-record
source <xs:element name="grant-records" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="grant-record" type="TSPGrantRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:TSPEventLogEntry/grant-records/grant-record
diagram
type tcip:TSPGrantRecord
properties
isRef 0
content complex
children grant-type grant-time
source <xs:element name="grant-record" type="TSPGrantRecord"/>

element tcip:TSPEventLogEntry/vin
diagram
type tcip:CPT-VIN
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 17
source <xs:element name="vin" type="CPT-VIN" minOccurs="0"/>

element tcip:TSPEventLogEntry/vehicleClassType
diagram
type tcip:SCP-VehicleClassType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="vehicleClassType" type="SCP-VehicleClassType" minOccurs="0"/>

element tcip:TSPEventLogEntry/serviceStrategyNumber
diagram
type tcip:SCP-PriorityStrategyNumber
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="serviceStrategyNumber" type="SCP-PriorityStrategyNumber" minOccurs="0"/>

element tcip:TSPEventLogEntry/timeOfServiceDesired
diagram
type tcip:SCP-TimeInterval
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="timeOfServiceDesired" type="SCP-TimeInterval" minOccurs="0"/>

element tcip:TSPEventLogEntry/timeOfEstimatedDeparture
diagram
type tcip:SCP-TimeInterval
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="timeOfEstimatedDeparture" type="SCP-TimeInterval" minOccurs="0"/>

element tcip:TSPEventLogEntry/preemption-vehicle
diagram
type tcip:CPT-VIN
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 17
source <xs:element name="preemption-vehicle" type="CPT-VIN" minOccurs="0"/>

element tcip:TSPEventLogEntry/actual-wait-time
diagram
type tcip:SCP-TimeInterval
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="actual-wait-time" type="SCP-TimeInterval" minOccurs="0"/>

element tcip:TSPEventLogEntry/strategyEmployed
diagram
type tcip:SCP-PriorityStrategyNumber
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="strategyEmployed" type="SCP-PriorityStrategyNumber" minOccurs="0"/>
