complexType tcip:FcFareHealthSub

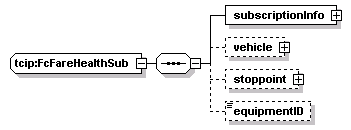

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionInfo vehicle stoppoint equipmentID
used by	element  tcip:fcFareHealthSub
source	<xs:complexType name="FcFareHealthSub">   <xs:sequence>     <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>     <xs:element name="vehicle" type="CPTVehicleIden" minOccurs="0"/>     <xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>     <xs:element name="equipmentID" type="CPT-SerialNumber" minOccurs="0"/>     <!-- individual machine identifier -->   </xs:sequence> </xs:complexType>

element tcip:FcFareHealthSub/subscriptionInfo

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:FcFareHealthSub/vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="vehicle" type="CPTVehicleIden" minOccurs="0"/>

element tcip:FcFareHealthSub/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>

element tcip:FcFareHealthSub/equipmentID

diagram
type	tcip:CPT-SerialNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="equipmentID" type="CPT-SerialNumber" minOccurs="0"/>
