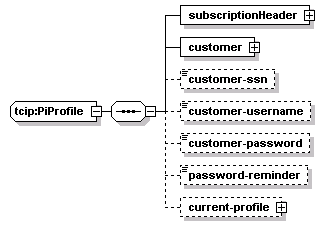

complexType tcip:PiProfile

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionHeader customer customer-ssn customer-username customer-password password-reminder current-profile
used by	element  tcip:piProfile
source	<xs:complexType name="PiProfile">   <xs:sequence>     <xs:element name="subscriptionHeader" type="CPTSubscriptionHeader"/>     <xs:element name="customer" type="PITravelerIden"/>     <!-- zero if unknown -->     <xs:element name="customer-ssn" type="CPT-SSN" minOccurs="0"/>     <xs:element name="customer-username" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="customer-password" type="CPT-Footnote" minOccurs="0"/>     <xs:element name="password-reminder" type="CPT-Footnote" minOccurs="0"/>     <!-- only if invalid/missing password -->     <xs:element name="current-profile" type="PICustomerProfile" minOccurs="0"/>   </xs:sequence> </xs:complexType>

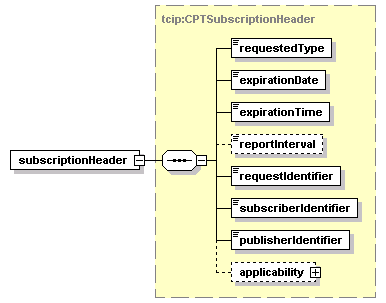

element tcip:PiProfile/subscriptionHeader

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionHeader" type="CPTSubscriptionHeader"/>

element tcip:PiProfile/customer

diagram
type	tcip:PITravelerIden
properties	isRef  0 content  complex
children	traveler-id agency-id firstName middleName lastName
source	<xs:element name="customer" type="PITravelerIden"/>

element tcip:PiProfile/customer-ssn

diagram
type	tcip:CPT-SSN
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="customer-ssn" type="CPT-SSN" minOccurs="0"/>

element tcip:PiProfile/customer-username

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="customer-username" type="CPT-Footnote" minOccurs="0"/>

element tcip:PiProfile/customer-password

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="customer-password" type="CPT-Footnote" minOccurs="0"/>

element tcip:PiProfile/password-reminder

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="password-reminder" type="CPT-Footnote" minOccurs="0"/>

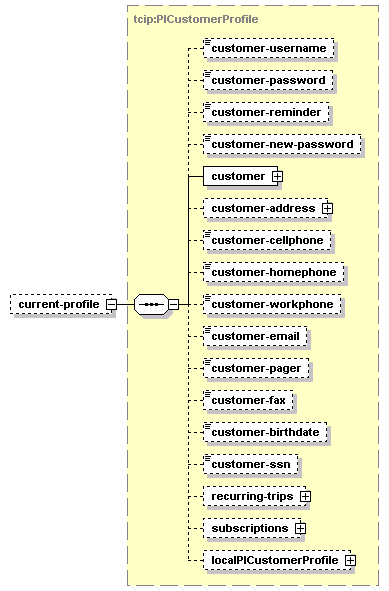

element tcip:PiProfile/current-profile

diagram
type	tcip:PICustomerProfile
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	customer-username customer-password customer-reminder customer-new-password customer customer-address customer-cellphone customer-homephone customer-workphone customer-email customer-pager customer-fax customer-birthdate customer-ssn recurring-trips subscriptions localPICustomerProfile
source	<xs:element name="current-profile" type="PICustomerProfile" minOccurs="0"/>
