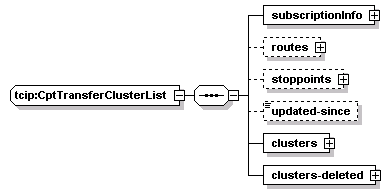

complexType tcip:CptTransferClusterList
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo routes stoppoints updated-since clusters clusters-deleted
used by
element tcip:cptTransferClusterList
source <xs:complexType name="CptTransferClusterList">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="routes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="stoppoints" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="stoppoint" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="updated-since" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="clusters">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="cluster" type="CPTTransferCluster"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="clusters-deleted">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="clusters-deleted-item" type="CPTTransferClusterIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:CptTransferClusterList/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:CptTransferClusterList/routes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children route
source <xs:element name="routes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CptTransferClusterList/routes/route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="route" type="SCHRouteIden"/>

element tcip:CptTransferClusterList/stoppoints
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children stoppoint
source <xs:element name="stoppoints" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="stoppoint" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CptTransferClusterList/stoppoints/stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:CptTransferClusterList/updated-since
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="updated-since" type="CPT-DateTime" minOccurs="0"/>

element tcip:CptTransferClusterList/clusters
diagram
properties
isRef 0
content complex
children cluster
source <xs:element name="clusters">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="cluster" type="CPTTransferCluster"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

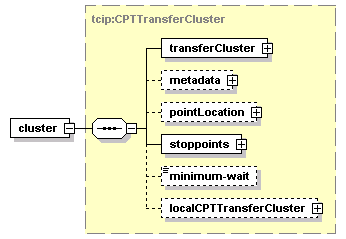

element tcip:CptTransferClusterList/clusters/cluster
diagram
type tcip:CPTTransferCluster
properties
isRef 0
content complex
children transferCluster metadata pointLocation stoppoints minimum-wait localCPTTransferCluster
source <xs:element name="cluster" type="CPTTransferCluster"/>

element tcip:CptTransferClusterList/clusters-deleted
diagram
properties
isRef 0
content complex
children clusters-deleted-item
source <xs:element name="clusters-deleted">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="clusters-deleted-item" type="CPTTransferClusterIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

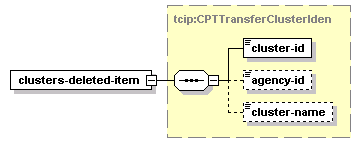

element tcip:CptTransferClusterList/clusters-deleted/clusters-deleted-item
diagram
type tcip:CPTTransferClusterIden
properties
isRef 0
content complex
children cluster-id agency-id cluster-name
source <xs:element name="clusters-deleted-item" type="CPTTransferClusterIden"/>
