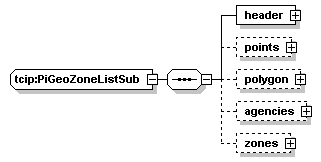

complexType tcip:PiGeoZoneListSub
diagram
namespace http://www.TCIP-Adopted-03-00-01
children header points polygon agencies zones
used by
element tcip:piGeoZoneListSub
source <xs:complexType name="PiGeoZoneListSub">
  <xs:sequence>
    <xs:element name="header" type="CPTSubscriptionHeader"/>
    <xs:element name="points" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="20">
          <xs:element name="point" type="SPPoint"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="polygon" type="SPPolygon" minOccurs="0"/>
    <xs:element name="agencies" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25">
          <xs:element name="agency" type="CPT-AgencyID"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="zones" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="zone" type="PIGeoZoneIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

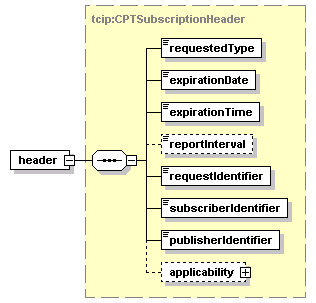

element tcip:PiGeoZoneListSub/header
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="header" type="CPTSubscriptionHeader"/>

element tcip:PiGeoZoneListSub/points
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children point
source <xs:element name="points" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="point" type="SPPoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiGeoZoneListSub/points/point
diagram
type tcip:SPPoint
properties
isRef 0
content complex
children pointName pointNodeId pointType linearReference addressPoint geoLocationPoint adminArea
source <xs:element name="point" type="SPPoint"/>

element tcip:PiGeoZoneListSub/polygon
diagram
type tcip:SPPolygon
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children polygonName vertices polygonId
source <xs:element name="polygon" type="SPPolygon" minOccurs="0"/>

element tcip:PiGeoZoneListSub/agencies
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children agency
source <xs:element name="agencies" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25">
      <xs:element name="agency" type="CPT-AgencyID"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiGeoZoneListSub/agencies/agency
diagram
type tcip:CPT-AgencyID
properties
isRef 0
content simple
source <xs:element name="agency" type="CPT-AgencyID"/>

element tcip:PiGeoZoneListSub/zones
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children zone
source <xs:element name="zones" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="zone" type="PIGeoZoneIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiGeoZoneListSub/zones/zone
diagram
type tcip:PIGeoZoneIden
properties
isRef 0
content complex
children zone-id states zone-name
source <xs:element name="zone" type="PIGeoZoneIden"/>
