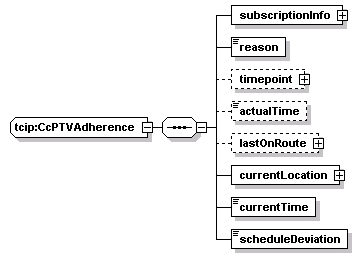

complexType tcip:CcPTVAdherence

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionInfo reason timepoint actualTime lastOnRoute currentLocation currentTime scheduleDeviation
used by	element  tcip:ccPTVAdherence
source	<xs:complexType name="CcPTVAdherence">   <xs:sequence>     <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>     <xs:element name="reason" type="CC-AdherenceMsgType"/>     <xs:element name="timepoint" type="SCHTimepointIden" minOccurs="0"/>     <xs:element name="actualTime" type="SCH-Time" minOccurs="0"/>     <xs:element name="lastOnRoute" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="currentLocation" type="lrms:GeoLocation"/>     <xs:element name="currentTime" type="CPT-DateTime"/>     <xs:element name="scheduleDeviation" type="CPT-Duration"/>   </xs:sequence> </xs:complexType>

element tcip:CcPTVAdherence/subscriptionInfo

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:CcPTVAdherence/reason

diagram
type	tcip:CC-AdherenceMsgType
properties	isRef  0 content  simple
source	<xs:element name="reason" type="CC-AdherenceMsgType"/>

element tcip:CcPTVAdherence/timepoint

diagram
type	tcip:SCHTimepointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	timepoint-id agency-id designator name
source	<xs:element name="timepoint" type="SCHTimepointIden" minOccurs="0"/>

element tcip:CcPTVAdherence/actualTime

diagram
type	tcip:SCH-Time
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="actualTime" type="SCH-Time" minOccurs="0"/>

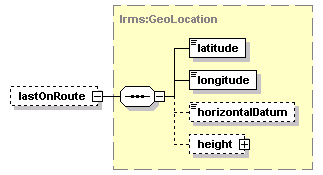

element tcip:CcPTVAdherence/lastOnRoute

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="lastOnRoute" type="lrms:GeoLocation" minOccurs="0"/>

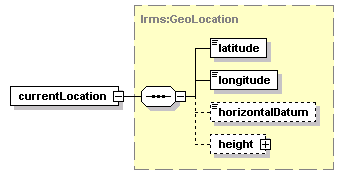

element tcip:CcPTVAdherence/currentLocation

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="currentLocation" type="lrms:GeoLocation"/>

element tcip:CcPTVAdherence/currentTime

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="currentTime" type="CPT-DateTime"/>

element tcip:CcPTVAdherence/scheduleDeviation

diagram
type	tcip:CPT-Duration
properties	isRef  0 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="scheduleDeviation" type="CPT-Duration"/>
