complexType tcip:PiLocationMapSub
diagram
namespace http://www.TCIP-Adopted-03-00-01
children header location distance
used by
element tcip:piLocationMapSub
source <xs:complexType name="PiLocationMapSub">
  <xs:sequence>
    <xs:element name="header" type="CPTSubscriptionHeader"/>
    <xs:element name="location">
      <xs:complexType>
        <xs:choice>
          <xs:element name="stops">
            <xs:complexType>
              <xs:sequence maxOccurs="20">
                <xs:element name="stop" type="CPTStoppointIden"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="points">
            <xs:complexType>
              <xs:sequence maxOccurs="20">
                <xs:element name="point" type="SPPoint"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:choice>
      </xs:complexType>
    </xs:element>
    <xs:element name="distance" type="lrms:Distance" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

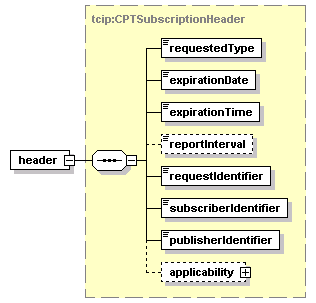

element tcip:PiLocationMapSub/header
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="header" type="CPTSubscriptionHeader"/>

element tcip:PiLocationMapSub/location
diagram
properties
isRef 0
content complex
children stops points
source <xs:element name="location">
  <xs:complexType>
    <xs:choice>
      <xs:element name="stops">
        <xs:complexType>
          <xs:sequence maxOccurs="20">
            <xs:element name="stop" type="CPTStoppointIden"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="points">
        <xs:complexType>
          <xs:sequence maxOccurs="20">
            <xs:element name="point" type="SPPoint"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

element tcip:PiLocationMapSub/location/stops
diagram
properties
isRef 0
content complex
children stop
source <xs:element name="stops">
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="stop" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiLocationMapSub/location/stops/stop
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="stop" type="CPTStoppointIden"/>

element tcip:PiLocationMapSub/location/points
diagram
properties
isRef 0
content complex
children point
source <xs:element name="points">
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="point" type="SPPoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiLocationMapSub/location/points/point
diagram
type tcip:SPPoint
properties
isRef 0
content complex
children pointName pointNodeId pointType linearReference addressPoint geoLocationPoint adminArea
source <xs:element name="point" type="SPPoint"/>

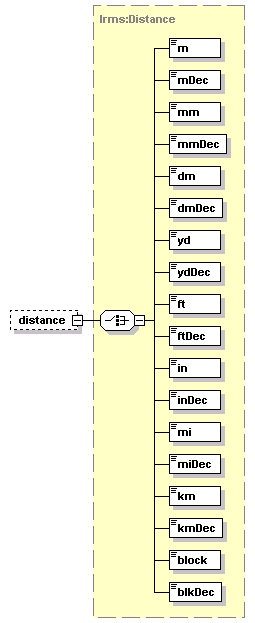

element tcip:PiLocationMapSub/distance
diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="distance" type="lrms:Distance" minOccurs="0"/>
