complexType tcip:PiLandmarksListSub

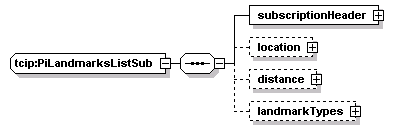

diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionHeader location distance landmarkTypes
used by
element tcip:piLandmarksListSub
source <xs:complexType name="PiLandmarksListSub">

<xs:sequence>

<xs:element name="subscriptionHeader" type="CPTSubscriptionHeader"/>

<xs:element name="location" type="SPPoint" minOccurs="0"/>

<xs:element name="distance" type="lrms:Distance" minOccurs="0"/>

<xs:element name="landmarkTypes" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="15000">

<xs:element name="landmarkType" type="PI-LandmarkType"/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>
</xs:complexType>

element tcip:PiLandmarksListSub/subscriptionHeader
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionHeader" type="CPTSubscriptionHeader"/>

element tcip:PiLandmarksListSub/location

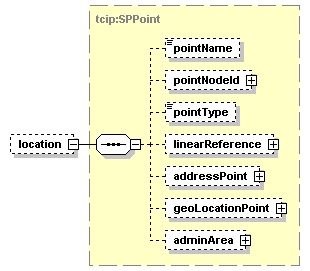

diagram
type tcip:SPPoint
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children pointName pointNodeId pointType linearReference addressPoint geoLocationPoint adminArea
source <xs:element name="location" type="SPPoint" minOccurs="0"/>

element tcip:PiLandmarksListSub/distance

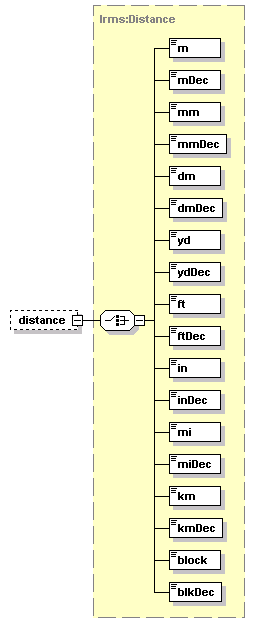

diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="distance" type="lrms:Distance" minOccurs="0"/>

element tcip:PiLandmarksListSub/landmarkTypes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children landmarkType
source <xs:element name="landmarkTypes" minOccurs="0">

<xs:complexType>

<xs:sequence maxOccurs="15000">

<xs:element name="landmarkType" type="PI-LandmarkType"/>

</xs:sequence>

</xs:complexType>
</xs:element>

element tcip:PiLandmarksListSub/landmarkTypes/landmarkType
diagram
type tcip:PI-LandmarkType
properties
isRef 0
content simple
source <xs:element name="landmarkType" type="PI-LandmarkType"/>
