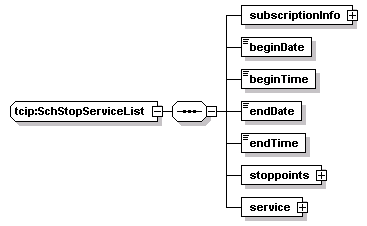

complexType tcip:SchStopServiceList
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo beginDate beginTime endDate endTime stoppoints service
used by
element tcip:schStopServiceList
source <xs:complexType name="SchStopServiceList">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="beginDate" type="CPT-Date"/>
    <xs:element name="beginTime" type="CPT-Time"/>
    <xs:element name="endDate" type="CPT-Date"/>
    <xs:element name="endTime" type="CPT-Time"/>
    <xs:element name="stoppoints">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="stoppoint" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="service">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="service-item" type="SCHServiceAtStop"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:SchStopServiceList/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:SchStopServiceList/beginDate
diagram
type tcip:CPT-Date
properties
isRef 0
content simple
source <xs:element name="beginDate" type="CPT-Date"/>

element tcip:SchStopServiceList/beginTime
diagram
type tcip:CPT-Time
properties
isRef 0
content simple
source <xs:element name="beginTime" type="CPT-Time"/>

element tcip:SchStopServiceList/endDate
diagram
type tcip:CPT-Date
properties
isRef 0
content simple
source <xs:element name="endDate" type="CPT-Date"/>

element tcip:SchStopServiceList/endTime
diagram
type tcip:CPT-Time
properties
isRef 0
content simple
source <xs:element name="endTime" type="CPT-Time"/>

element tcip:SchStopServiceList/stoppoints
diagram
properties
isRef 0
content complex
children stoppoint
source <xs:element name="stoppoints">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="stoppoint" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SchStopServiceList/stoppoints/stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:SchStopServiceList/service
diagram
properties
isRef 0
content complex
children service-item
source <xs:element name="service">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="service-item" type="SCHServiceAtStop"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

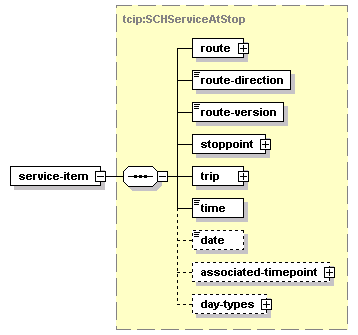

element tcip:SchStopServiceList/service/service-item
diagram
type tcip:SCHServiceAtStop
properties
isRef 0
content complex
children route route-direction route-version stoppoint trip time date associated-timepoint day-types
source <xs:element name="service-item" type="SCHServiceAtStop"/>
