complexType tcip:PiAccessibilityListSub
diagram
namespace http://www.TCIP-Adopted-03-00-01
children header criteria modes
used by
element tcip:piAccessibilityListSub
source <xs:complexType name="PiAccessibilityListSub">
  <xs:sequence>
    <xs:element name="header" type="CPTSubscriptionHeader"/>
    <xs:element name="criteria">
      <xs:complexType>
        <xs:choice>
          <xs:element name="agency" type="CPT-AgencyID"/>
          <xs:element name="routes">
            <xs:complexType>
              <xs:sequence maxOccurs="100">
                <xs:element name="route" type="SCHRouteIden"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="stoppoints">
            <xs:complexType>
              <xs:sequence maxOccurs="100">
                <xs:element name="stoppoint" type="CPTStoppointIden"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:choice>
      </xs:complexType>
    </xs:element>
    <xs:element name="modes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10">
          <xs:element name="mode" type="CPT-Mode"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

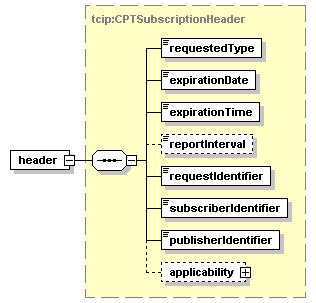

element tcip:PiAccessibilityListSub/header
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="header" type="CPTSubscriptionHeader"/>

element tcip:PiAccessibilityListSub/criteria
diagram
properties
isRef 0
content complex
children agency routes stoppoints
source <xs:element name="criteria">
  <xs:complexType>
    <xs:choice>
      <xs:element name="agency" type="CPT-AgencyID"/>
      <xs:element name="routes">
        <xs:complexType>
          <xs:sequence maxOccurs="100">
            <xs:element name="route" type="SCHRouteIden"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="stoppoints">
        <xs:complexType>
          <xs:sequence maxOccurs="100">
            <xs:element name="stoppoint" type="CPTStoppointIden"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:choice>
  </xs:complexType>
</xs:element>

element tcip:PiAccessibilityListSub/criteria/agency
diagram
type tcip:CPT-AgencyID
properties
isRef 0
content simple
source <xs:element name="agency" type="CPT-AgencyID"/>

element tcip:PiAccessibilityListSub/criteria/routes
diagram
properties
isRef 0
content complex
children route
source <xs:element name="routes">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiAccessibilityListSub/criteria/routes/route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="route" type="SCHRouteIden"/>

element tcip:PiAccessibilityListSub/criteria/stoppoints
diagram
properties
isRef 0
content complex
children stoppoint
source <xs:element name="stoppoints">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="stoppoint" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiAccessibilityListSub/criteria/stoppoints/stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:PiAccessibilityListSub/modes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children mode
source <xs:element name="modes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10">
      <xs:element name="mode" type="CPT-Mode"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiAccessibilityListSub/modes/mode
diagram
type tcip:CPT-Mode
properties
isRef 0
content simple
facets
minLength 1
maxLength 2
source <xs:element name="mode" type="CPT-Mode"/>
