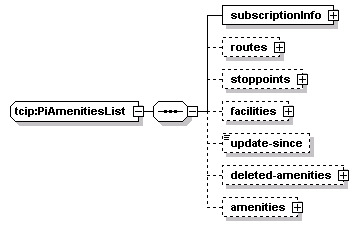

complexType tcip:PiAmenitiesList
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo routes stoppoints facilities update-since deleted-amenities amenities
used by
element tcip:piAmenitiesList
source <xs:complexType name="PiAmenitiesList">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="routes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="stoppoints" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="stoppoint" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="facilities" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="facility" type="CPTTransitFacilityIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="deleted-amenities" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="deleted-amenity" type="PIAmenityIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="amenities" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="amenity" type="PIAmenity"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:PiAmenitiesList/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:PiAmenitiesList/routes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children route
source <xs:element name="routes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiAmenitiesList/routes/route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="route" type="SCHRouteIden"/>

element tcip:PiAmenitiesList/stoppoints
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children stoppoint
source <xs:element name="stoppoints" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="stoppoint" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiAmenitiesList/stoppoints/stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:PiAmenitiesList/facilities
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children facility
source <xs:element name="facilities" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="facility" type="CPTTransitFacilityIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiAmenitiesList/facilities/facility
diagram
type tcip:CPTTransitFacilityIden
properties
isRef 0
content complex
children facility-id agency-id facility-name base-name
source <xs:element name="facility" type="CPTTransitFacilityIden"/>

element tcip:PiAmenitiesList/update-since
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>

element tcip:PiAmenitiesList/deleted-amenities
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children deleted-amenity
source <xs:element name="deleted-amenities" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="deleted-amenity" type="PIAmenityIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

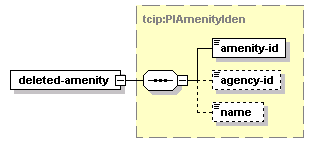

element tcip:PiAmenitiesList/deleted-amenities/deleted-amenity
diagram
type tcip:PIAmenityIden
properties
isRef 0
content complex
children amenity-id agency-id name
source <xs:element name="deleted-amenity" type="PIAmenityIden"/>

element tcip:PiAmenitiesList/amenities
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children amenity
source <xs:element name="amenities" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="amenity" type="PIAmenity"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

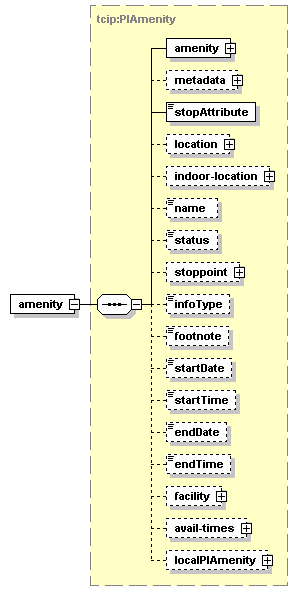

element tcip:PiAmenitiesList/amenities/amenity
diagram
type tcip:PIAmenity
properties
isRef 0
content complex
children amenity metadata stopAttribute location indoor-location name status stoppoint infoType footnote startDate startTime endDate endTime facility avail-times localPIAmenity
source <xs:element name="amenity" type="PIAmenity"/>
