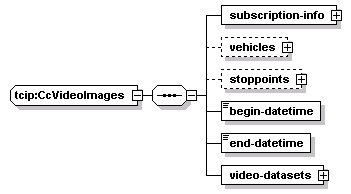

complexType tcip:CcVideoImages
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscription-info vehicles stoppoints begin-datetime end-datetime video-datasets
used by
element tcip:ccVideoImages
source <xs:complexType name="CcVideoImages">
  <xs:sequence>
    <xs:element name="subscription-info" type="CPTSubscriptionHeader"/>
    <xs:element name="vehicles" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="vehicle" type="CPTVehicleIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="stoppoints" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="stoppoint" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="begin-datetime" type="CPT-DateTime"/>
    <xs:element name="end-datetime" type="CPT-DateTime"/>
    <xs:element name="video-datasets">
      <xs:complexType>
        <xs:sequence maxOccurs="1000000">
          <xs:element name="video-dataset" type="CCVideoRecord"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:CcVideoImages/subscription-info
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscription-info" type="CPTSubscriptionHeader"/>

element tcip:CcVideoImages/vehicles
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children vehicle
source <xs:element name="vehicles" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="vehicle" type="CPTVehicleIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CcVideoImages/vehicles/vehicle
diagram
type tcip:CPTVehicleIden
properties
isRef 0
content complex
children vehicle-id agency-id vin
source <xs:element name="vehicle" type="CPTVehicleIden"/>

element tcip:CcVideoImages/stoppoints
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children stoppoint
source <xs:element name="stoppoints" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="stoppoint" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CcVideoImages/stoppoints/stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:CcVideoImages/begin-datetime
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="begin-datetime" type="CPT-DateTime"/>

element tcip:CcVideoImages/end-datetime
diagram
type tcip:CPT-DateTime
properties
isRef 0
content simple
source <xs:element name="end-datetime" type="CPT-DateTime"/>

element tcip:CcVideoImages/video-datasets
diagram
properties
isRef 0
content complex
children video-dataset
source <xs:element name="video-datasets">
  <xs:complexType>
    <xs:sequence maxOccurs="1000000">
      <xs:element name="video-dataset" type="CCVideoRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

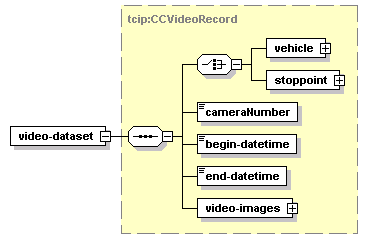

element tcip:CcVideoImages/video-datasets/video-dataset
diagram
type tcip:CCVideoRecord
properties
isRef 0
content complex
children vehicle stoppoint cameraNumber begin-datetime end-datetime video-images
source <xs:element name="video-dataset" type="CCVideoRecord"/>
