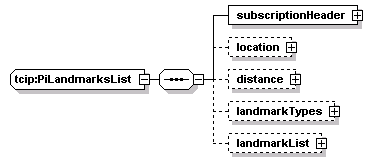

complexType tcip:PiLandmarksList
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionHeader location distance landmarkTypes landmarkList
used by
element tcip:piLandmarksList
source <xs:complexType name="PiLandmarksList">
  <xs:sequence>
    <xs:element name="subscriptionHeader" type="CPTSubscriptionHeader"/>
    <xs:element name="location" type="SPPoint" minOccurs="0"/>
    <xs:element name="distance" type="lrms:Distance" minOccurs="0"/>
    <xs:element name="landmarkTypes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="15000">
          <xs:element name="landmarkType" type="PI-LandmarkType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="landmarkList" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="15000">
          <xs:element name="landmark" type="PILandmark"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:PiLandmarksList/subscriptionHeader
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionHeader" type="CPTSubscriptionHeader"/>

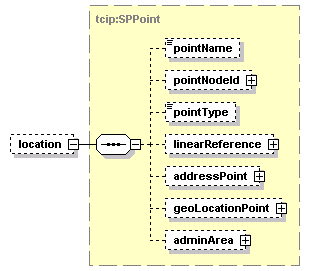

element tcip:PiLandmarksList/location
diagram
type tcip:SPPoint
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children pointName pointNodeId pointType linearReference addressPoint geoLocationPoint adminArea
source <xs:element name="location" type="SPPoint" minOccurs="0"/>

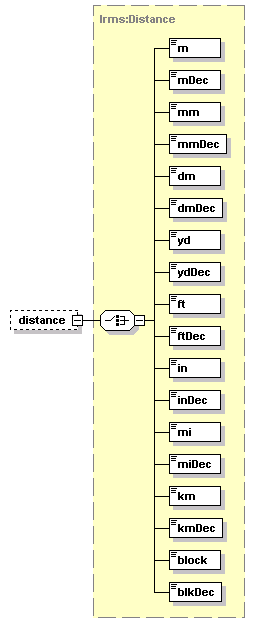

element tcip:PiLandmarksList/distance
diagram
type lrms:Distance
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="distance" type="lrms:Distance" minOccurs="0"/>

element tcip:PiLandmarksList/landmarkTypes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children landmarkType
source <xs:element name="landmarkTypes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="15000">
      <xs:element name="landmarkType" type="PI-LandmarkType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiLandmarksList/landmarkTypes/landmarkType
diagram
type tcip:PI-LandmarkType
properties
isRef 0
content simple
source <xs:element name="landmarkType" type="PI-LandmarkType"/>

element tcip:PiLandmarksList/landmarkList
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children landmark
source <xs:element name="landmarkList" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="15000">
      <xs:element name="landmark" type="PILandmark"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:PiLandmarksList/landmarkList/landmark
diagram
type tcip:PILandmark
properties
isRef 0
content complex
children id type name location description
source <xs:element name="landmark" type="PILandmark"/>
