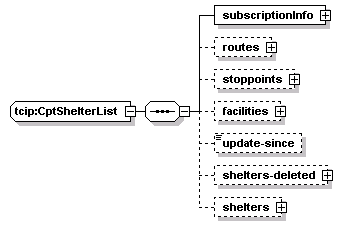

complexType tcip:CptShelterList
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo routes stoppoints facilities update-since shelters-deleted shelters
used by
element tcip:cptShelterList
source <xs:complexType name="CptShelterList">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="routes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="route" type="SCHRouteIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="stoppoints" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="stoppoint" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="facilities" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="facility" type="CPTTransitFacilityIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="shelters-deleted" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="shelters-deleted-item" type="CPTShelterIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="shelters" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="shelter" type="CPTShelter"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:CptShelterList/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:CptShelterList/routes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children route
source <xs:element name="routes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="route" type="SCHRouteIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CptShelterList/routes/route
diagram
type tcip:SCHRouteIden
properties
isRef 0
content complex
children route-id agency-id route-designator route-name
source <xs:element name="route" type="SCHRouteIden"/>

element tcip:CptShelterList/stoppoints
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children stoppoint
source <xs:element name="stoppoints" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="stoppoint" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CptShelterList/stoppoints/stoppoint
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:CptShelterList/facilities
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children facility
source <xs:element name="facilities" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="facility" type="CPTTransitFacilityIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CptShelterList/facilities/facility
diagram
type tcip:CPTTransitFacilityIden
properties
isRef 0
content complex
children facility-id agency-id facility-name base-name
source <xs:element name="facility" type="CPTTransitFacilityIden"/>

element tcip:CptShelterList/update-since
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="update-since" type="CPT-DateTime" minOccurs="0"/>

element tcip:CptShelterList/shelters-deleted
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children shelters-deleted-item
source <xs:element name="shelters-deleted" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="shelters-deleted-item" type="CPTShelterIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

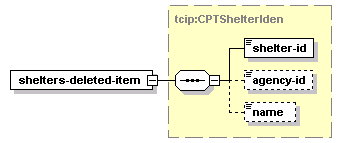

element tcip:CptShelterList/shelters-deleted/shelters-deleted-item
diagram
type tcip:CPTShelterIden
properties
isRef 0
content complex
children shelter-id agency-id name
source <xs:element name="shelters-deleted-item" type="CPTShelterIden"/>

element tcip:CptShelterList/shelters
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children shelter
source <xs:element name="shelters" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="shelter" type="CPTShelter"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CptShelterList/shelters/shelter
diagram
type tcip:CPTShelter
properties
isRef 0
content complex
children shelter metadata shelterType padType stoppoint
source <xs:element name="shelter" type="CPTShelter"/>
