complexType tcip:CptFleetSubsets

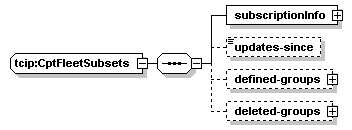

diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo updates-since defined-groups deleted-groups
used by
element tcip:cptFleetSubsets
source <xs:complexType name="CptFleetSubsets">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:element name="updates-since" type="CPT-DateTime" minOccurs="0"/>
    <xs:element name="defined-groups" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="30000">
          <xs:element name="defined-group" type="CPTFleetSubsetGroup"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="deleted-groups" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="30000">
          <xs:element name="deleted-group" type="CPT-FleetSubset"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:CptFleetSubsets/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:CptFleetSubsets/updates-since
diagram
type tcip:CPT-DateTime
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="updates-since" type="CPT-DateTime" minOccurs="0"/>

element tcip:CptFleetSubsets/defined-groups
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children defined-group
source <xs:element name="defined-groups" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="30000">
      <xs:element name="defined-group" type="CPTFleetSubsetGroup"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CptFleetSubsets/defined-groups/defined-group

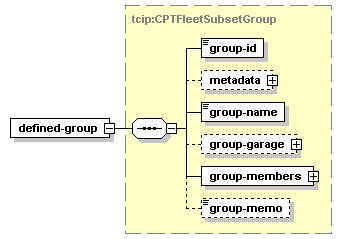

diagram
type tcip:CPTFleetSubsetGroup
properties
isRef 0
content complex
children group-id metadata group-name group-garage group-members group-memo
source <xs:element name="defined-group" type="CPTFleetSubsetGroup"/>

element tcip:CptFleetSubsets/deleted-groups
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children deleted-group
source <xs:element name="deleted-groups" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="30000">
      <xs:element name="deleted-group" type="CPT-FleetSubset"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CptFleetSubsets/deleted-groups/deleted-group
diagram
type tcip:CPT-FleetSubset
properties
isRef 0
content simple
source <xs:element name="deleted-group" type="CPT-FleetSubset"/>
