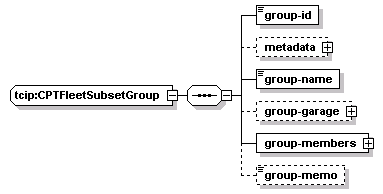

complexType tcip:CPTFleetSubsetGroup

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	group-id metadata group-name group-garage group-members group-memo
used by	element  tcip:CptFleetSubsets/defined-groups/defined-group
source	<xs:complexType name="CPTFleetSubsetGroup">   <xs:sequence>     <xs:element name="group-id" type="CPT-FleetSubset"/>     <xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>     <xs:element name="group-name" type="CPT-GroupName"/>     <xs:element name="group-garage" type="CPTTransitFacilityIden" minOccurs="0"/>     <!-- only if group shares garage -->     <xs:element name="group-members">       <xs:complexType>         <xs:sequence maxOccurs="100000">           <xs:element name="group-member" type="CPTVehicleIden"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="group-memo" type="CPT-Footnote" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CPTFleetSubsetGroup/group-id

diagram
type	tcip:CPT-FleetSubset
properties	isRef  0 content  simple
source	<xs:element name="group-id" type="CPT-FleetSubset"/>

element tcip:CPTFleetSubsetGroup/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData" minOccurs="0"/>

element tcip:CPTFleetSubsetGroup/group-name

diagram
type	tcip:CPT-GroupName
properties	isRef  0 content  simple
facets	minLength  1 maxLength  40
source	<xs:element name="group-name" type="CPT-GroupName"/>

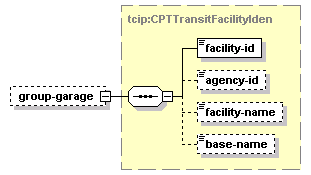

element tcip:CPTFleetSubsetGroup/group-garage

diagram
type	tcip:CPTTransitFacilityIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	facility-id agency-id facility-name base-name
source	<xs:element name="group-garage" type="CPTTransitFacilityIden" minOccurs="0"/>

element tcip:CPTFleetSubsetGroup/group-members

diagram
properties	isRef  0 content  complex
children	group-member
source	<xs:element name="group-members">   <xs:complexType>     <xs:sequence maxOccurs="100000">       <xs:element name="group-member" type="CPTVehicleIden"/>     </xs:sequence>   </xs:complexType> </xs:element>

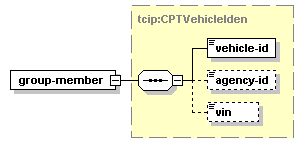

element tcip:CPTFleetSubsetGroup/group-members/group-member

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="group-member" type="CPTVehicleIden"/>

element tcip:CPTFleetSubsetGroup/group-memo

diagram
type	tcip:CPT-Footnote
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="group-memo" type="CPT-Footnote" minOccurs="0"/>
